Introduction
Switching power supplies play a vital role in modern electronic systems, especially in the medical field, where reliability, safety, and energy efficiency are of utmost importance. A power supply for medical devices must meet strict requirements for electromagnetic compatibility (EMC), safety standards (such as IEC 60601-1), and thermal performance, while maintaining compact size and high reliability.
With the growing demand for compact and ventilated designs, open-frame medical power supply units are increasingly adopted. Furthermore, the requirement for low-leakage medical power supply solutions is critical for patient-connected applications. This article explores three core technologies that enable high-efficiency power supply design: synchronous rectification, soft switching, and optimized magnetic component design.
1. Synchronous Rectification Technology
Principle Overview
Traditional rectification uses Schottky diodes, which exhibit forward voltage drops (typically 0.4–0.6V), resulting in significant power loss at high output currents. Synchronous rectification replaces diodes with MOSFETs, taking advantage of their low Rds(on) to reduce conduction loss. For instance, in a 5V/10A output scenario, rectification losses can drop from 5W to under 1W using MOSFETs.
Benefits of Medical Power Supplies
In open-frame medical power supply applications, thermal management is often limited. Synchronous rectification reduces heat generation and boosts efficiency, particularly in the 50W–300W power range typical in medical instruments.
Design Challenges
Synchronous rectification requires precise timing and dead-time control to avoid cross-conduction and short circuits. In medical-grade power supplies, additional protection circuitry and temperature monitoring are necessary to ensure safety and reliability.
2. Soft Switching Technology (ZVS & ZCS)
Understanding ZVS and ZCS
Soft switching techniques enable transistors to switch when either voltage (ZVS: Zero Voltage Switching) or current (ZCS: Zero Current Switching) is near zero, minimizing switching losses and EMI. ZVS is commonly used in buck and full-bridge converters, while ZCS is more applicable to boost or flyback topologies.
Advantages and Limitations
Implementing soft switching can reduce switching losses by over 30% and significantly lower electromagnetic noise. This is particularly beneficial in low-leakage medical power supply designs, helping them pass stringent EMC testing.
However, soft switching requires complex control, resonant component selection, and may have narrow load ranges. In medical-grade supplies, this requires hybrid PWM-control strategies for full-load coverage.
3. Magnetic Component Optimization
Transformer and Inductor Design
Magnetic components often contribute the most to total power loss in high-frequency switching power supplies. Loss reduction can be achieved by optimizing core shape, winding geometry, and interleaving. Techniques such as multi-stranded Litz wire help minimize AC resistance and skin effect at high frequencies.
Material Selection
In a power supply for medical devices, the choice of core material is critical. Ferrites and nanocrystalline materials offer superior performance in high-frequency environments. Compared to traditional iron powder cores, nanocrystalline materials demonstrate lower core losses above 200kHz and are ideal for high-density designs.
Leakage Current and Leakage Inductance
Minimizing leakage current is essential in medical-grade applications. Magnetics must be designed with symmetrical winding, reinforced insulation, and careful shielding. Leakage inductance must also be controlled to reduce common-mode noise paths, vital in low-leakage medical power supply systems.

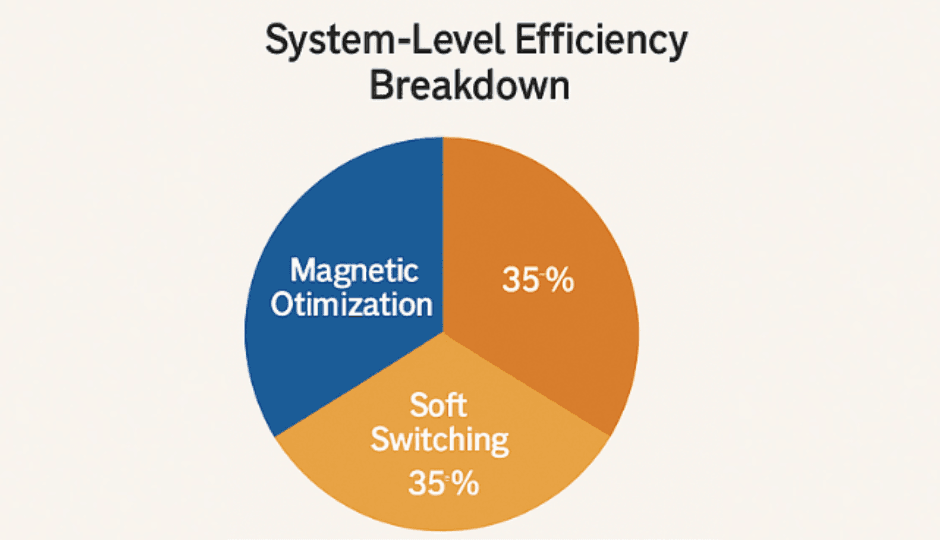

4. System-Level Efficiency Considerations
True high-efficiency design requires system-level synergy. Synchronous rectification reduces output losses, soft switching decreases dynamic switching losses, and optimized magnetics minimize conduction and core losses. Together, these improvements can raise overall efficiency from 85% to 92% or higher.
But in medical applications, designers also face unique constraints—such as reinforced insulation, creepage/clearance distances, and patient protection mechanisms—all of which must comply with IEC 60601-1 standards. In open frame medical power supply designs, careful component layout and PCB spacing are essential to meet these safety requirements while maintaining performance.
Conclusion
As medical devices evolve toward miniaturization, portability, and intelligence, their power supplies must also advance in performance. Through the integration of synchronous rectification, soft switching, and magnetic optimization, designers can meet the growing demands for energy efficiency, safety, and compactness.
Soon, power supply for medical devices will further embrace modular design, intelligent thermal control, and AI-enabled diagnostics. Efficient and low-leakage medical power supply units—especially those in open frame configurations—will be foundational in supporting innovation across patient monitoring, imaging, and therapeutic applications.
