Factory-direct medical grade power supply manufacturer based in Dongguan, China, since 1989— with GaN technology and an in-house EMC Lab for full compliance testing.
In business since 1989
Patents granted
ODM customers
RMB R&D investment
Medical power supply manufactured in-house, Dongguan, China · GaN technology · 5W–1000W
IEC 60601-1 · ISO 13485 · CE · FCC · UL — Full medical grade certification for global markets
ODM / Private Label — Custom medical power supply from drawing, MOQ 1,000 units, sample in 7-15 days
Choose a suitable medical-grade AC-DC power supply that not only matches the power and voltage, but also needs to meet the IEC 60601-1 standard, strictly control low leakage current, and satisfy the highly reliable requirements of the clinical environment. UE manufacturers provide desktop, wall mount, open frame, and USB-PD power supply products -IEC 60601-1 certified, 5W-1000W, custom DC output on request.

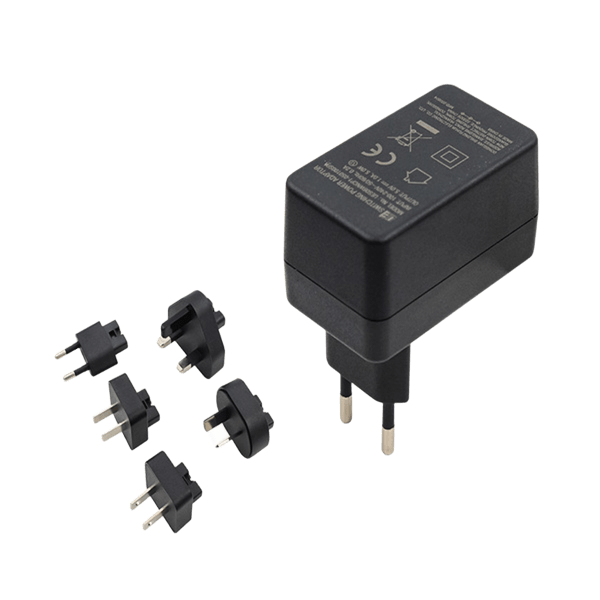

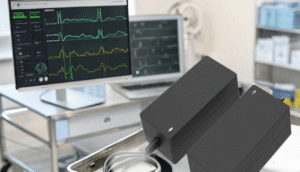

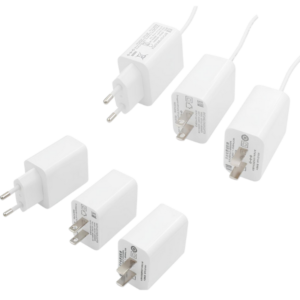

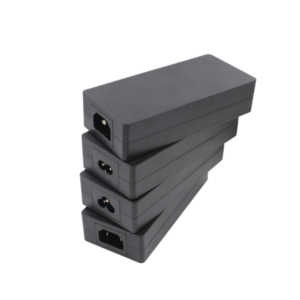

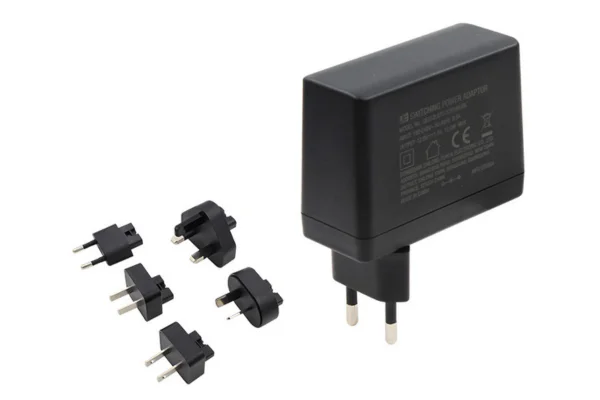

External medical power supplies include two types: desktop power adapters and wall-mounted power adapters, the most widely used AC-DC power solutions for Class II medical devices. DC output is stable, low ripple, leakage current ≤100μA at 264VAC worst-case input, meeting IEC 60601-1 3rd/4th edition requirements.

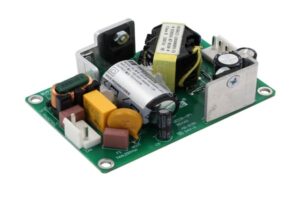

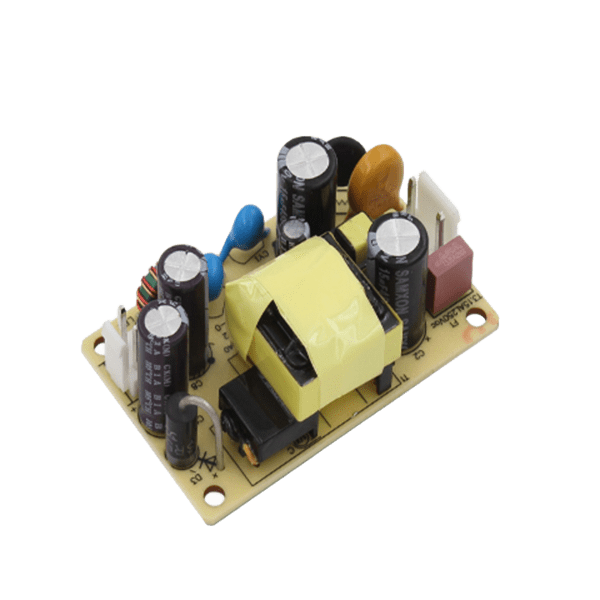

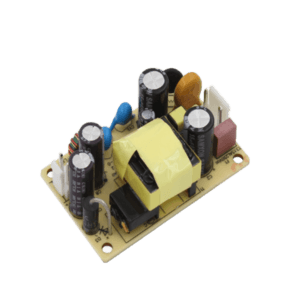

Open-frame-type medical power supplies are the ideal choice when the device design requires the power supply to be directly integrated into the system's internal components. Also available in an enclosed configuration with metal shielding for dustproof and EMI-resistant applications. Suitable for medical imaging equipment, laboratory analyzers, and rehabilitation training equipment.
Enclosed medical power supply uses a metal shielding enclosure with internal EMI filtering, providing dustproof, moisture-proof, and EMI-resistant power solutions for medical devices. Suitable for fixed medical devices, surgical systems, and BF-rated applications with strict electrical safety and EMC requirements.

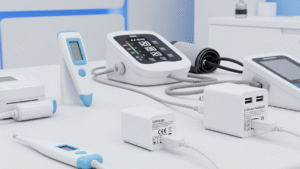

The common USB charger is not designed for the medical environment. The medical USB power supply must meet IEC 60601-1 leakage current and isolation requirements — essential when powering bedside tablet terminals, wearable monitoring devices, or ward entertainment systems.
Choosing the right medical-grade AC-DC power supply is not just about matching the wattage and voltage. The key to affecting the choice type’s core factors is installation method, mechanical form factor, enclosure type, and output interface. These decide how to combine the power supply and your device’s design. The table below compares UE’S four medical power supply configurations across the parameters that differ most between types.
| Parameter | External | Open Frame | Enclosed | Medical USB |
|---|---|---|---|---|
| Power range | 24W – 310W | 15W – 500W | 60W – 500W | 23W – 240W |
| Form factor | Desktop / Wall Mount | PCB board (open) | Metal enclosure | Compact adapter |
| Installation | External / standalone | Internal / embedded | Fixed / rack mount | External / standalone |
| Output interface | DC barrel connector | PCB terminal | DC / terminal block | USB-A / USB-C (PD) |
| EMI shielding | Internal | Optional (with cover) | Internal metal shield | Internal |
| Cooling method | Convection | Convection / Fan | Convection / Fan | Convection |
| IP / protection | Standard | Open (IP20) | Dustproof / IP40+ | Standard |
| Remote on/off | — | Optional | — | |
| BF rated option | — | — | ||
| Typical applications | Breast pump, nebulizer | Ventilator, patient monitor | Infusion pump, surgical display | Wearable health monitor, hearing aid |
Summary and Selection Guide:
UE all series meet IEC 60601-1 strict requirements, which guarantee low leakage current, and provide high-performance medical-grade power supply assurance.
Choose the medical power supply needed from three core parameters: output voltage, wattage, and form factor. Whether you need a medical-grade 12V power supply for a portable device, a 24V medical-grade power supply commonly used for diagnostic equipment, or a 500W medical power supply for a high-power consumption system. You can make sure the required specification combination through the sheets below.
| Output Voltage | ≤30W Compact | 30W–100W Mid-range | 100W–500W High-power |
|---|---|---|---|
| 5V / 6V Low voltage output | 5V · 15W 6V · 15W / 30W | 5V · 50W | — |
| 9V / 12V Medical Grade 12V | 9V · 15W / 20W 12V · 15W / 30W | 12V · 36W / 48W 12V · 65W / 90W | 12V · 120W / 150W 12V · 250W / 500W |
| 15V / 18V Medium voltage output | 15V · 15W / 20W 18V · 15W / 30W | 15V · 36W / 90W 18V · 36W / 90W | 15V · 120W / 250W 18V · 120W / 500W |
| 24V Medical Grade 24V | 24V · 15W / 30W | 24V · 36W / 48W 24V · 65W / 90W | 24V · 120W / 150W 24V · 250W / 500W |
| 48V / 54V 54VDC Power Supply | — | 48V · 48W / 90W 54V · 90W | 48V · 120W / 250W / 500W 54V · 120W / 250W / 500W |
Cannot find the required specification? UE supports ODM-custom output voltage and power solutions. Common requirements include being suitable for medical PoE system use, a 54VDC power supply, a 277V power supply input specification for the North American market, and a compact 30W medical power supply for a limited space device.
For medical device manufacturers, selecting a medically approved power supply starts with confirming its certifications, not just its product specifications. UE medical PSU according to IEC 60601-1↗ standard design, covering class II medical power supply isolation requirement, and medical device power supply safety standards of the main markets. It helps your device’s compliance review start from a solid starting point.
IEC 60601-1
Core Medical Safety Standard
IEC 60601-1 is a basic safety standard for all medical electrical equipment. UE medical PSU meets the requirements for the Third and Fourth Editions, including 2×MOPP↗ isolation design, leakage current ≤100µA, and BF rated↗ patients protected. Each 60601 medical power supply must meet this design basic line.
Class II Insulation
Double Insulation Design
Class II medical power supply with enhanced double insulation design, and doesn’t need protective grounding. It is especially suitable for portable and handheld medical devices. UE’s class II products include desktop and wall-mount power adapters, is widely used for home healthcare and diagnosis devices.
Global Market Certifications
Medically Approved
UE products carry medical certifications for key 7+ global market certifications covering 60+ countries via the CB Scheme. Specific certification covers a range different from the model; you can contact us to ensure the certification solution for the target market and device type.
EMC & Home Healthcare
IEC 60601-1-2↗ / IEC 60601-1-11
UE self-built EMC laboratory benchmarked against German TÜV and Swiss SGS standards — covering full radiated and conducted emission testing, reducing pre-compliance iteration by 4–6 weeks compared to third-party lab dependency. Devices intended for home healthcare environments also meet IEC 60601-1-11, covering medically approved custom power supply’s additional safety standards.
Not sure which certification your device needs?
Not every medical device can match the existing specifications of the medical power supplies. When your project has special requirements for voltage, wattage, form factor, connector, and brand. UE, as an experienced custom medical power supply ODM, provides the multi-level custom service from complete circuit development to configuration-level tuning. Whether you want to find a custom medical power supply manufacturer with a stable production base or an ODM partner with certification experience, our engineering team works with you from specification confirmation to final shipment.
Suitable for projects requiring the development of a dedicated power supply from scratch. UE R&D teams take charge of circuit design, mechanical design, heat management, and pre-cert testing. Give you a complete custom medical power supply design, and support your autonomy to supporting your independent target market certification process. It is suitable for brand owners and system integrators who need to fully match the specification and own an independent product project.
Case Studies
Client type
North America oxygen concentrator manufacturer
Challenge
The device runs continuously, so the power supply needs to handle long-hour thermal stress without a fan, and still meet IEC 60601-1 leakage and isolation requirements.
Solution
UE customized UES90C — fanless natural convection design, leakage ≤100μA at 264VAC worst case, pre-compliance finished in self-built EMC Lab, UL and CB both passed.
Result
5-year ongoing cooperation, the same platform now supports multiple device models in its lineup.
Suitable for clients who hope to launch a private-label medical power supply quickly. Based on UE's existing certification platform design, support adjustment specification, and brand customization, the client's autonomy finishes target market certification, reducing development timeline and upfront certification cost compared to full ODM development.
Case Studies
Client type
Japan oral irrigator manufacturer
Challenge
The compact 8W 5V design has very little room for filtering components, but PSE certification requires strict EMC and leakage current control at the same time.
Solution
UE customized 8W 5V/1A ultra-low leakage current design, pre-compliance finished in self-built EMC Lab, PSE first submission passed without any re-testing.
Result
8-year ongoing cooperation, one of our earliest Japan market partnerships still running today.
Not all custom power supplies need to start development. UE supports adjusting the configuration in the existing medical power supply model. Including plug type, DC connector, length, and specification of medical-grade cord. It is a fast way to not increase development timeline to match the device requirements.
Case Studies
Client type
Europe hair removal device manufacturer
Challenge
The instantaneous pulse discharge from the hair removal device repeatedly damaged the power supply, and the client had gone through several suppliers before reaching UE.
Solution
UE customized UES24LCP with EFT/Burst ±2KV and Surge ±1KV protection built-in, overload auto recovery design, CE and TÜV certification passed.
Result
Long-term cooperation maintained, the same power supply platform is now supporting the client’s new product line expansion.
How to Get Started
①Submit drawing (DXF / STEP / PDF) or fill in the specification form
②Engineering review + DFM feedback within 48h
③Sample delivery 7–15 days · Mass production 35–60days after approval
④Shipping: DDP / FOB Shenzhen · Payment: T/T · L/C accepted
Tell us your requirement
Provide target voltage, wattage, application, and target market, and our engineering teams will reply to you with a custom feasibility assessment in two working days.
Case 1: Home Healthcare Device — European Market
Challenge: The client has changed the manufacturer, but the leakage current issue persists, and CE certification has repeatedly been obstructed.
Solution: UE backdate the root reson by self-building the EMC laboratory. Planning the PCB insulation partition again. Solve the problem from the source, and do not adjust the specification repeatedly.
Result: First sample completed in 10 weeks — faster than the client’s previous 2 suppliers combined, CE was passed, and a long-term exclusive supply cooperation was built.
Case 2: Clinical Diagnostic Equipment — Dual Markets: North America and Europe
Client Type: Portable Patient Monitor Brander
Challenge: The single power supply needs to cover UL and CB certification, a narrow design margin, and has no experience with certification.
Solution: UE based on the platform with certification and design that match the architecture quickly. And our self-built laboratory has finished the pre-certification test, which excludes the risk in advance.
Result: 18 weeks from development kick-off to certified bulk shipment — UL and CB both passed on first submission, zero re-testing cost.
Case 3: Therapeutic Device — Multi-Market Platform
Client Type: Medical Rehabilitation Equipment Manufacturer(Europe, Japan, and Southeast Asia)
Challenge: Three market maintenance independent SKUs, stock dispersion, and high pressure in inventory management
Solution: UE combines CE, CB, and PSE into one model that is based on a multi-market certification platform, and finishes many standard pre-compliance verification by self-build EMC laboratory.
Result: SKUs reduced from 3 to 1, annual volume scaled to 50,000+ units, and inventory holding cost significantly reduced. We keep in contact today.

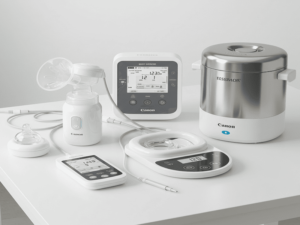

From personal home healthcare monitor to clinical therapeutic devices, UE AC-DC power supplies for medical applications enable precise matching to different devices’ safety level, leakage current limit, and use environment. Please, according to the application, find a medical power solution suitable for your devices.
Compact, stable, reliable, and low noise power supply that meets IEC 60601-1-11↗ for personal treatment and home healthcare medical devices requirements.
Hair Removal Devices
Hearing Aid
Laser Hair Growth Devices
Breast Pump
Dental Floss Machine
Electric Prosthesis
Selecting the right medical equipment power supply for diagnostic and clinical systems requires stable output, precise voltage regulation, and full IEC 60601-1 compliance.
Patient Monitor
Ultrasound Systems
Ventilator

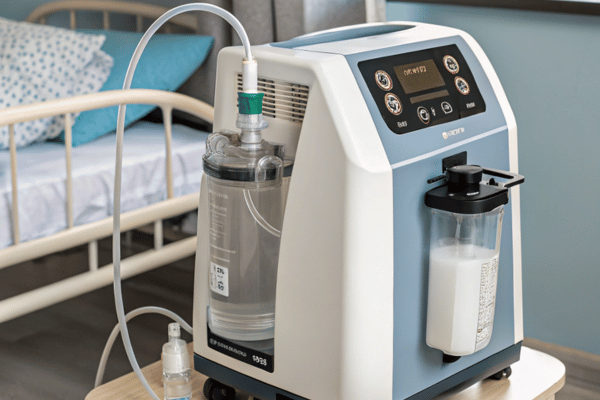

Oxygen Concentrator

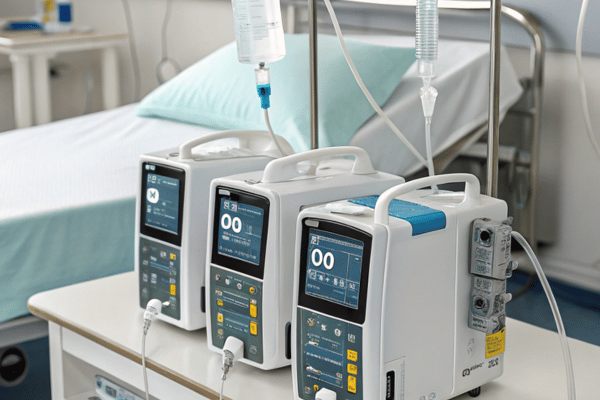

Infusion Pump
Medical Imaging Systems
For the engineer of medical devices, the power supply specification sheet is just a start. The actual performance under load conditions, thermal stress, and long-term operation is what determines whether your device achieves the clinical reliability standard. UE GaN-based design achieves up to 93% efficiency — 8–12% higher than conventional silicon solutions, enabling 30% volume reduction at equivalent power output.
The standard test before the Ex-factory is a bottom line, not an end. For the engineer of a medical device, the true problem is: Can this power supply still maintain stable performance after operating for thousands of hours in a clinical environment?
UE medical power supply’s verified system is far more than the common ex-factory quality inspection. Each medical PSU is 100% full load aging test as a standard production process. Before the assembly line, screening out early-life failure risks in advance.MTBF >200,000 hours calculated per MIL-HDBK-217- a methodology-traceable figure that can be directly referenced in your design documentation and certification submissions
Production verified process includes 4 stages:
For device engineers currently pursuing IEC 60601-1 certification or FDA 510(k) submissions, a power supply backed by complete, traceable test data can directly reduce system-level compliance workload system-level compliance work and provide a clear audit basis for your QA team.
Electrical isolation is a basic safe requirement of medical power supply design. UE medical isolated power supply with 2×MOPP enhanced isolation design, dielectric withstand voltage between input and output reaches 4,000VAC, with creepage and clearance distances exceeding IEC 60601-1 requirements for double insulation. It meets IEC 60601-1 isolation verification required for BF rated patient contact applications.
For medical devices in direct contact with patients, leakage current is a core parameter directly related to patient safety. UE ultra-low leakage current design at 264VAC worst-case input — touch leakage current ≤100µA, 3× lower than the IEC 60601-1 enclosure leakage limit of 500µA, with no additional downstream filter components required, meeting BF rated application requirements.
→ Read our complete guide: Medical Power Supply Design Considerations
As medical devices continue to trend toward miniaturization, the size of the medical power supply has become a key design limitation. UE high-density power supplies for medical applications deliver maximum power output within a minimal footprint. The compact open frame series is compatible with standard chassis slots and custom enclosures. Power density up to 0.718 W/cm³ — exceeding the typical 0.4–0.5 W/cm³ range of conventional medical open-frame designs, enabling 30%+ size reduction at equivalent wattage, covering 15W to 500W.
→ Read our complete guide: Medical Power Supply Design Considerations
Design a compliant medical power supply, or select one for your medical device, that does not simply match the voltage and wattage. Medical power supply design must confirm the isolation level, leakage current limit, input voltage range, operating temperature, and compliance certification before bulk production. UE sorts out core medical power supply requirements, which need to be verified by the engineers in the design stage.
Medical Grade Power Supply Requirements — Design Checklist
Safety & Isolation
Isolated Level: 2xMOPP (Patient contact equipment)
Input/output Withstand Voltage: ≥4,000VAC
Meet IEC 60601-1 Third Edition / Fourth Edition
Confirm Application: BF Rated (Indirect heart contact)
Leakage Current
Touch Leakage Current: ≤100μA (BF rated, 264VAC input)
Earth Leakage Current: ≤500μA
Ultra-low capacitance design, no external filter required.
Input & Output
Wide Input Voltage: 85-264VAC, covering the global market
Stable Output Voltage: Within ±1%
Output Wattage: Matching device peak power consumption +20%
Support remote on/off control (Suitable for open frame type)
EMC & Environment
Meet IEC 60601-1-2 (EMC)
Home healthcare device extra meets IEC 60601-1-11
The operating temperature range covers the use environment of the device
IP rating satisfies medical applications
Certifications & Market Approval
Target Market Certification: CE/UL/FCC/CB/PSE/KC
ODM Cooperate: Certification by the client autonomy applies or the manufacturer's own
Own medical CB certification covers the target market
Confirm Model Certification State: New/certificated model
Need more in-depth technical references of medical PSU?
Design Guide
Medical Power Supply Design Considerations
Key parameters engineers must verify before selecting or designing a medical-grade power supply — isolation, leakage, certification.
Requirements
Medical Grade Power Supply Requirements
A complete checklist of safety, isolation, leakage current, and certification requirements for global markets.
Q01
What is the difference between 1×MOPP and 2×MOPP isolation, and when does my application require 2×MOPP?
Q02
What leakage current limits apply to my device, and how do I verify compliance under worst-case conditions?
Q03
How do IEC 60601-1-2 Edition 4 EMC requirements differ from Edition 3, and how does it affect my power supply selection?
Q04
What documentation should I request from a medical power supply manufacturer to support my device's regulatory submission?
Q05
What should I evaluate when qualifying a medical power supply supplier for long-term supply chain reliability?
Q06
How does my choice of medical power supply affect my device's time-to-market across different regional markets?
Q07
How can I use a single medical power supply platform to cover multiple device variants and regional markets?
Q08
How do I choose the right medical power supply form factor early in device development to avoid costly redesigns later?
Q09
What should I clarify in an ODM medical power supply agreement to protect my design IP and certification ownership?
Q10
How should I assess pricing competitiveness in medical power supply sourcing without compromising on compliance quality?
Q11
What is the MOQ for custom medical power supplies?
Q12
What certifications do your medical PSUs carry?
Q13
How long is the lead time for ODM medical power supply orders?
Q14
What file formats do you accept for custom PSU design submissions?
Q15
Do you provide samples before bulk production?
