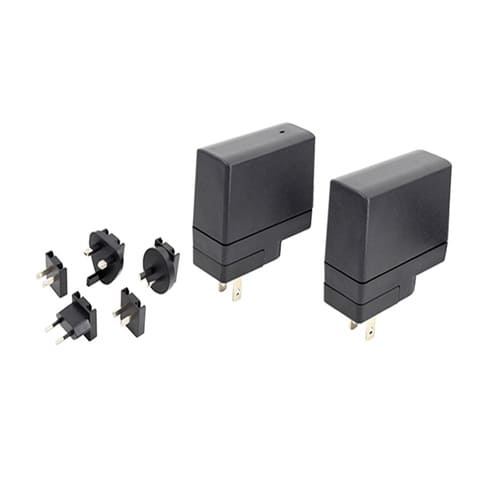

Medical Power Supply UES12LCP-SPA
Home Medical Power Supply UES12LCP-SPA 2 MOPP 12v wall plug external switching 12w medical power supply Meets communication and medical safety certification 2 MOPP isolation
Medical & l.T.E.safety approvals
2 MOPP input to output isolation
Leakage current ≤100uA
Energy efficiency level Vl
≤0.075W standby power
5V-24Voutputs, up to 24W
Up to 5,000m operating altitude

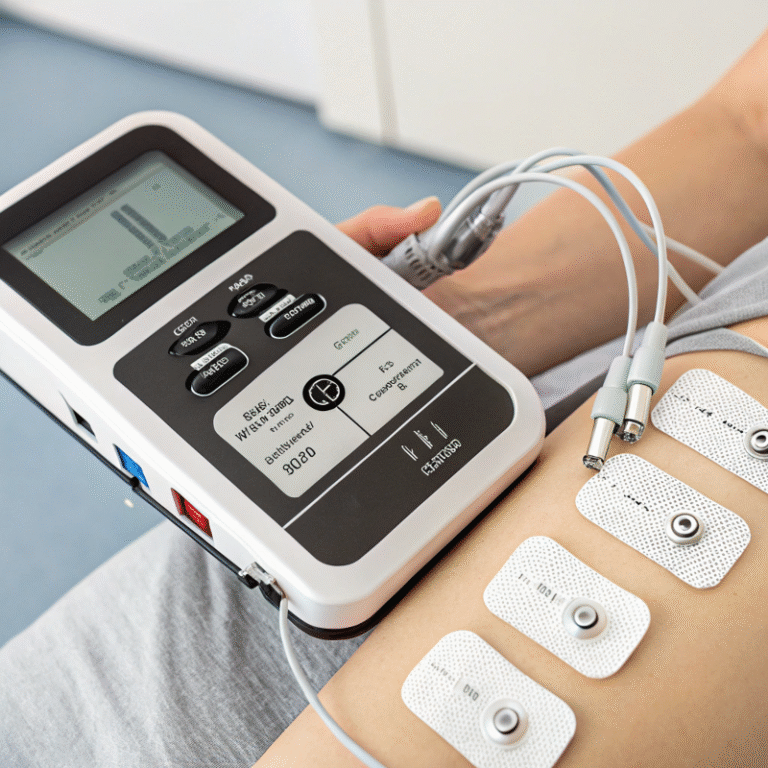

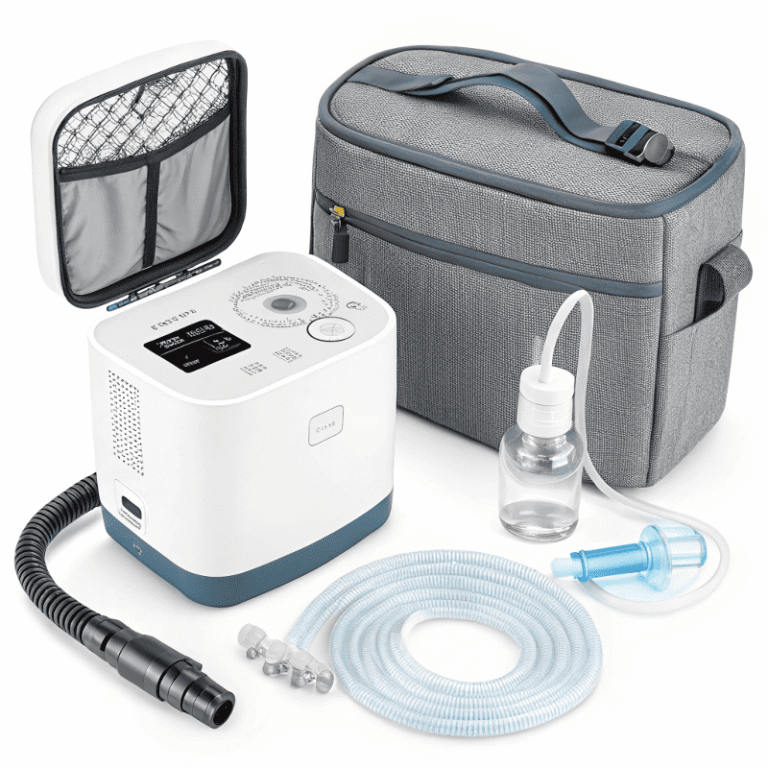

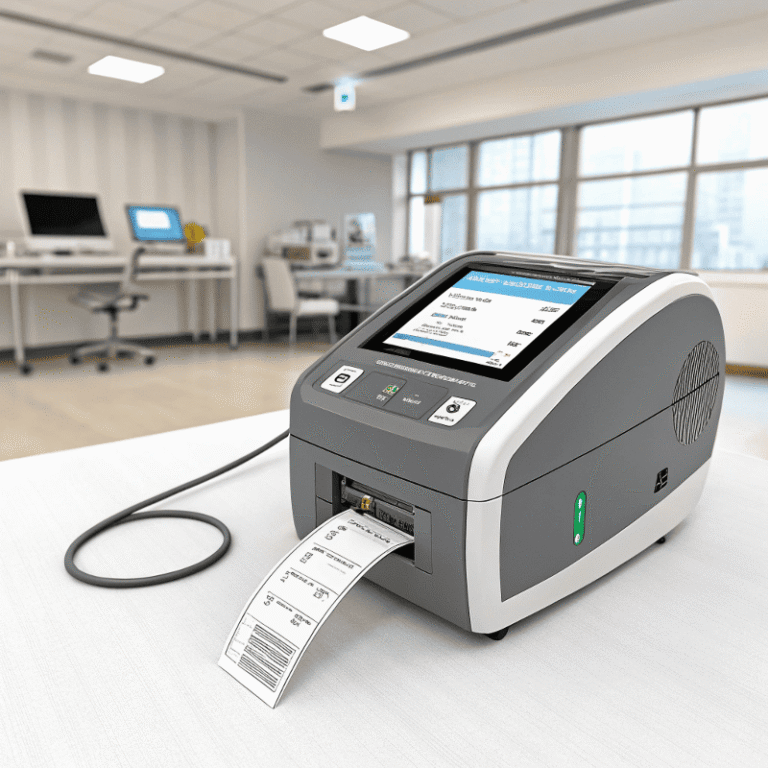

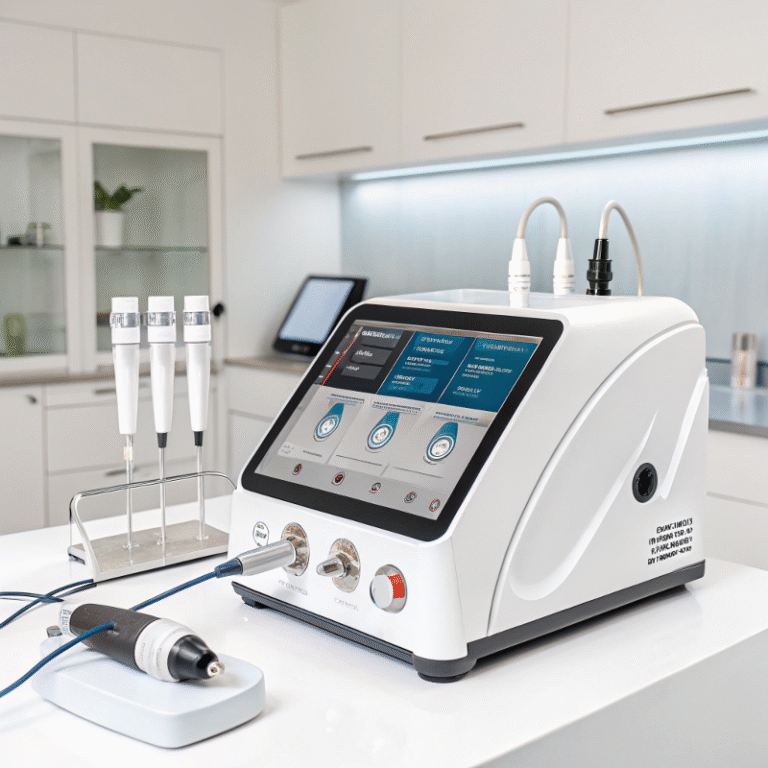

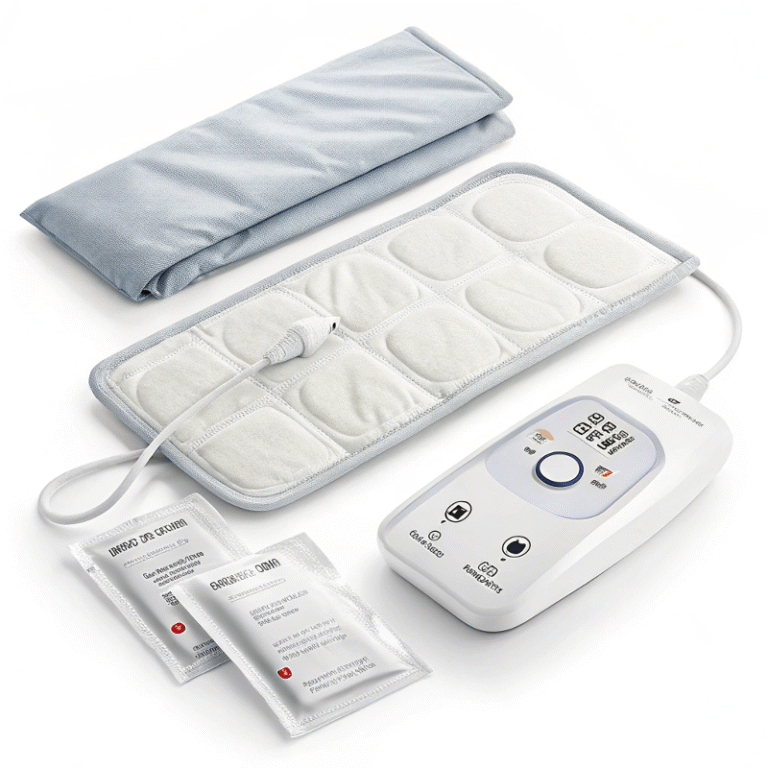

The UES24E-SPA is a reliable 24W 2A 12V medical power supply, a desktop ac dc power adaptor designed for medical applications. With a universal 90- 264VAC input, it offers 5V 3A to 24V outputs, delivering up to 3A. Certified to IEC 60601-1 and IEC 62368-1, it ensures 2 x MOPP isolation, ≤100µA leakage current, and DOE Level VI efficiency with ≤0.075W standby power. Featuring IP42 protection, customizable DC connectors, and operation up to 5,000m altitude, it’s ideal for medical equipment and portable electronics, providing safe, efficient, and versatile power globally. Apply in portable CPAP, TENS pain therapy device, small nebulizer, skin analysis equipment, hot compress therapy equipment, and medical printer.
Safety Standards – IEC60601,ES60601,EN60601
Safety Approvals – CB, CCC, CE, cULus, FCC, NRTL, PSE, RCM, TUV-GS, TUV-Mark
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES24E-SPA | 17.70 | 80-264 | 5.0-5.9 | 0.01-3.00 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 22.50 | 80-264 | 6.0-7.5 | 0.01-3.00 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 21.00 | 80-264 | 7.6-8.0 | 0.01-2.62 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 21.00 | 80-264 | 8.1-8.9 | 0.01-2.36 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 9.0-10.0 | 0.01-2.40 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 10.1-11.0 | 0.01-2.18 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 11.1-12.0 | 0.01-2.00 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 12.1-13.0 | 0.01-1.84 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 13.1-14.0 | 0.01-1.71 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 14.1-15.0 | 0.01-1.60 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 19.0-20.0 | 0.01-1.20 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 20.1-21.0 | 0.01-1.14 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 21.1-22.0 | 0.01-1.09 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 22.1-23.0 | 0.01-1.04 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
| UES24E-SPA | 24.00 | 80-264 | 23.1-24.0 | 0.01-1.00 | 0~+40 | CB,UL,TUV-Mark,CE,CCC,PSE,KC,RCM,FCC |
It is commonly used in blood pressure monitors, pulse oximeters, CPAP machines, nebulizers, and diagnostic readers.
This adapter supports output voltages from 5V to 24V, including custom fixed-voltage settings like 5V, 9V, 12V, 15V, or 24V.
Yes, it’s ideal for home healthcare devices like portable CPAPs, nebulizers, and personal therapy units.
Yes, it complies with IEC/EN/UL 60601-1 standards and supports 2xMOPP insulation for patient safety.
Yes, it has a fanless design, making it quiet and suitable for patient environments.
Yes, it is commonly used with handheld analyzers, urine analyzers, and POCT equipment.
Yes, many low-wattage heating and physiotherapy devices use this type of adapter.
It supports a universal input range of 90–264VAC for global use.
Yes, DC plugs, USB connectors, or medical-grade locking connectors can be provided as needed.
Yes, it is designed for reliable long-term use in continuous applications.
