A comprehensive guide on open frame medical power supply and external medical power supply for ventilators, covering applications, technical specifications, safety standards, case studies, and selection tips for hospitals and home care.

Table of Contents

1. Introduction to Medical Power Supply
2. Understanding Open Frame Medical Power Supply
3. Understanding External Medical Power Supply
4. Comparison Between Open Frame and External Medical Power Supply
5. Medical Safety Standards and Regulatory Compliance
6. Selection Guidelines and Best Practices
7. Case Studies: Hospital and Home Use
8. Maintenance and Troubleshooting Tips
9. FAQ
10. Summary and Recommendations

1. Introduction to Medical Power Supply

Medical ventilators are life-critical devices that provide respiratory support in hospitals, ICUs, emergency rooms, and home care. The performance and reliability of these devices are heavily dependent on a stable medical power supply.

• Why power matters: Unstable power can lead to ventilator malfunction, incorrect airflow, or pressure control errors, potentially endangering patients.
• Types of medical power supply: Ventilators typically use either an open-frame medical power supply (internal) or an external medical power supply (standalone). Both types have their advantages, limitations, and use scenarios.

2. Understanding Open Frame Medical Power Supply

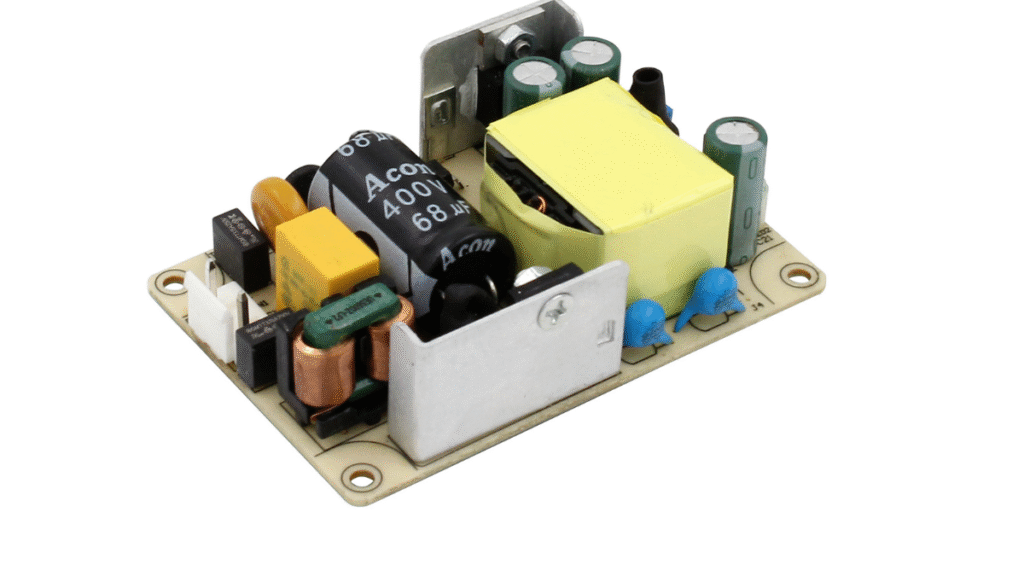

2.1 Definition and Structure

An open frame medical power supply is a highly integrated module installed inside the ventilator chassis. It converts AC mains electricity to stable DC output required by sensitive medical electronics. Open frame designs are often chosen for fixed hospital ventilators because of their high reliability and compact form factor.

2.2 Technical Specifications

• Input voltage: Typically 100–240V AC
• Output voltage: Custom DC ranges based on ventilator design
• Efficiency: 85–92%
• Isolation: Meets IEC 60601-1 standards for medical electrical safety
• Cooling: Internal ventilation or integrated heat sinks

2.3 Advantages

1. Compact Integration: Reduces internal wiring, saving space.
2. High Stability: Provides precise voltage and current to ventilator circuits.
3. Low EMI: Internal placement and shielding reduce electromagnetic interference.

2.4 Limitations

• Requires technical expertise for maintenance.
• Internal heat management is critical to avoid performance degradation.

2.5 Typical Use Cases

• ICU ventilators in fixed hospital settings
• Operating rooms where continuous, stable operation is critical

3. Understanding External Medical Power Supply

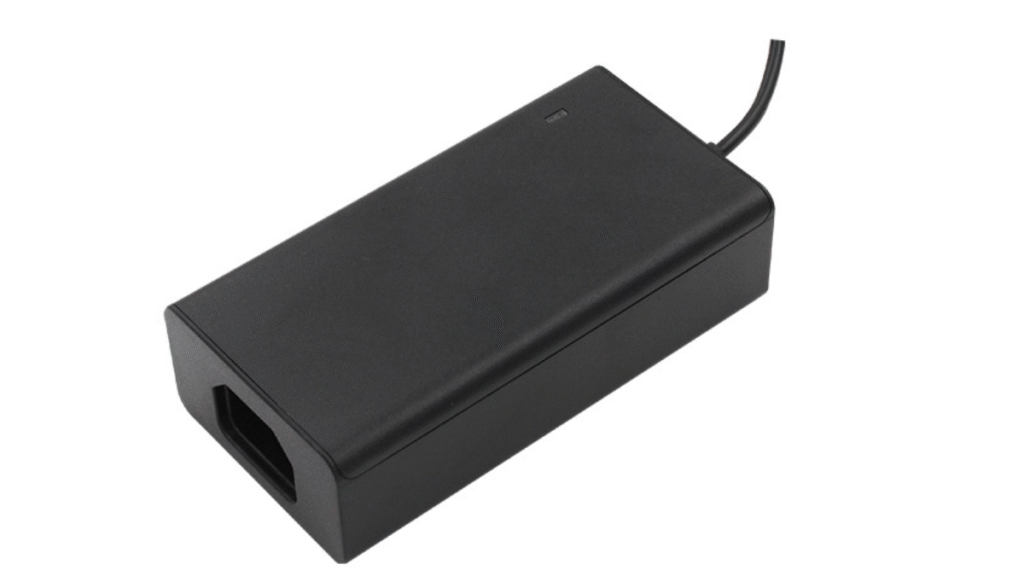

3.1 Definition and Structure

An external medical power supply is a separate unit that connects to a ventilator via a port. This design provides flexibility and portability, especially for home care ventilators, mobile ventilators, and emergency medical setups.

3.2 Technical Specifications

• Input voltage: 100–240V AC
• Output voltage: Matches ventilator requirements
• Certification: IEC 60601-1 and CE compliant
• Cooling: Passive or active, depending on design

3.3 Advantages

1. Easy Maintenance: Can be replaced without opening the ventilator chassis.
2. Portable: Lightweight and ideal for mobile applications.
3. Flexible Options: Can swap for different voltages or power ratings depending on use.

3.4 Limitations

• External cables may clutter space.
• Higher risk of EMI if exposed to harsh environments.

3.5 Typical Use Cases

• Home care ventilators
• Mobile emergency ventilators in ambulances or field hospitals

4. Comparison Between Open Frame and External Medical Power Supply

4.1 Feature Comparison Table

4.2 Performance Analysis

• Open frame units excel in high stability, low EMI, and are ideal for long-term fixed deployment.
• External units provide maintenance convenience and portability but may be slightly less stable.

4.3 Use Case Summary

• Open Frame Medical Power Supply: ICU, OR, hospital ventilators
• External Medical Power Supply: Home care, portable, emergency ventilators

5. Medical Safety Standards and Regulatory Compliance

5.1 IEC 60601-1 Compliance

All medical power supplies must meet IEC 60601-1 safety standards for protection against:

• Electric shock
• Overvoltage
• Overcurrent
• Short-circuit

5.2 Thermal Management Considerations

• Open frame: Adequate internal cooling and airflow required.
• External: Passive or active cooling must match output load.

5.3 Best Practices

• Only use manufacturer-certified medical power supplies.
• Avoid exposure to moisture, extreme heat, or dust.
• Inspect connectors and cables regularly for damage.

Read more: What Are the Safety Standards and Certification Systems for Medical Power Supplies?

6. Selection Guidelines and Best Practices

• Determine Use Scenario: Fixed vs portable, hospital vs home.
• Match Voltage & Current Ratings: Ensure the power supply meets ventilator specifications.
• Maintenance Considerations: Open frame requires specialized service; external units are easier to replace.
• Portability Needs: Choose external units for mobile applications.
• Certification: Ensure IEC 60601-1 or equivalent compliance.

Read More:

• How to Choose the Right Medical Power Supply for Your Equipment
• 2025 Medical Device Power Supply Selection Guide

7. Case Studies: Hospital and Home Use

7.1 Hospital ICU Case Study

• ICU ventilators using open frame medical power supply achieved <1% voltage deviation under full load, ensuring uninterrupted ventilation for critical patients.
• Maintenance required skilled technicians every 12–18 months.

7.2 Home Care Case Study

• Home-use ventilators with external medical power supply allowed caregivers to replace units in seconds, ensuring continuity during power or adapter faults.
• Portability enabled use in different rooms or transport in ambulances.

8. Maintenance and Troubleshooting Tips

• Regular Inspection: Check cables and connectors for wear.
• Thermal Management: Ensure ventilator vents are not blocked.
• Replacement Strategy: Replace external medical power supply at the first sign of instability.
• Professional Service: Open frame units should be serviced only by certified technicians.

9. FAQ (SEO Rich Snippet Optimized)

1. What is an open frame medical power supply?
   • It is an internal module delivering stable DC to ventilator circuits.
2. Why use an external medical power supply?
   • For portability, ease of replacement, and flexible deployment.
3. How to ensure compatibility of a medical power supply?
   • Check voltage, current ratings, and IEC 60601-1 certification.
4. Which lasts longer: open frame or external medical power supply?
   • Open frame is durable but harder to service; external is easy to replace.

10. Summary and Recommendations

• Open Frame Medical Power Supply: Best for hospital ventilators requiring high stability and minimal interference.
• External Medical Power Supply: Ideal for home care, mobile, and emergency ventilators where portability and maintenance ease are important.
• Selection Tip: Match medical power supply type to usage scenario, maintenance capability, and environmental conditions.
