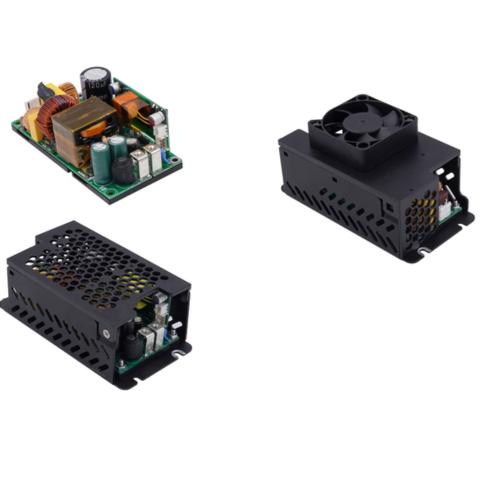

Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Home Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP 48Vdc 2A open frame power supply
48W
Complies with medical and communications safety certifications
2 MOPP isolation protection
Leakage current ≤ 10
Energy Efficiency level VI
Standby power consumption≤0.075W
Working altitude 5000 meters
The UES48-SPA-OP1 24V desktop power adapter is a high-performance solution with an output power of 48W, designed for medium-power applications such as industrial control and communication equipment. The adapter supports global voltage input (90- 264VAC), has passed multiple international safety certifications (such as UL, TUV, CB, CE, FCC, etc.), meets the latest energy efficiency standards of DOE VI and CoC V5 Tier 2, and ensures green environmental protection and energy efficiency. The product has overvoltage, overcurrent, and short-circuit protection functions to ensure safe and reliable use. With a simple appearance and sturdy structure, it is suitable for powering professional equipment with high requirements for performance and stability. This 36V power supply applies in mobile monitoring terminals and display screens, small ultrasonic equipment, medium and low power electrotherapy devices, low frequency physical therapy devices, small infusion pumps, and small centrifuges.
Safety Standards – IEC60601
Safety Approvals – CB, CE, cULus
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES48-SPA-OP1 | 48.0 | 90-264 | 24.0 | 0.01-2.0 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 24.1-25.0 | 0.01-1.92 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 25.1-26.0 | 0.01-1.84 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 26.1-27.0 | 0.01-1.77 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 27.1-28.0 | 0.01-1.71 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 28.1-29.0 | 0.01-1.65 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 29.1-30.0 | 0.01-1.60 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 30.1-31.0 | 0.01-1.54 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 31.1-32.0 | 0.01-1.50 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 32.1-33.0 | 0.01-1.45 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 33.1-34.0 | 0.01-1.41 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 34.1-35.0 | 0.01-1.37 | -30~+60 | CB,NRTL |
| UES48-SPA-OP1 | 48.0 | 90-264 | 35.1-36.0 | 0.01-1.33 | -30~+60 | CB,NRTL |
Portable monitors, small imaging systems, electric hospital beds, and therapeutic equipment.
It provides flexibility to power motors, control boards, and lighting modules requiring medium voltage.
Yes, it supports TENS, EMS, ultrasound therapy, and medical massage devices.
Absolutely, it is ideal for portable monitors, wheelchairs, and mobile treatment carts.
Yes, it complies with IEC 60601-1 and EMC requirements for medical equipment.
Over-voltage, over-current, short-circuit, and over-temperature protections ensure safety.
Yes, it can drive motors and control modules for these devices.
Yes, it powers ultrasound machines and endoscope light sources.
Yes, it supports small centrifuges, reagent dispensers, and sample processors.
Designed for reliable continuous use with proper cooling.
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Home Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP 48Vdc 2A open frame power supply
One stop power supply solution Power Supply Solution for Facial Beauty Devices Reliable, low-noise power adapters designed for beauty and skincare technologies Quankang delivers specialized
One stop power supply solution Power Supply Solution for Wearable Health Monitors Compact, safe, and efficient power adapters tailored for next-generation health tracking Quankang delivers
Efficiency, a more and more important word in the present, almost used everywhere in life.You may ask “What does efficiency have to do with the
As a professional manufacturer with 35 years of experience, Quankang has witnessed so many innovations through the years. With the technology developed, home healthcare devices are gradually driving

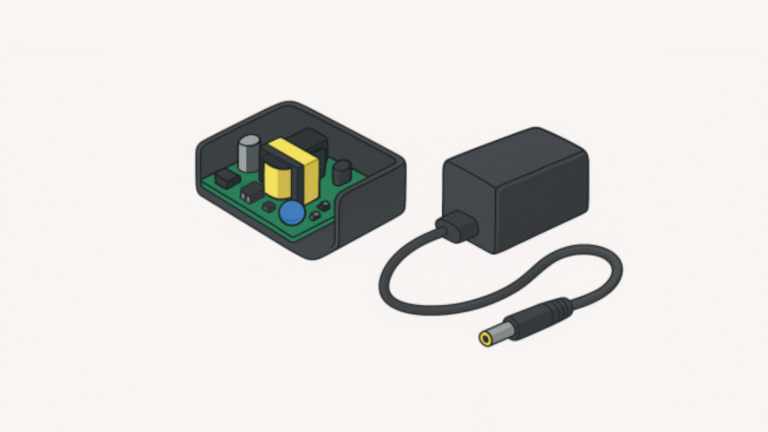

Choosing a proper wall-mount power adapter means a lot to a medical device; a good quality wall-mount power supply will undoubtedly determine the service lifespan, performance,
