Medical Power Supply UES12LCP-SPA
Home Medical Power Supply UES12LCP-SPA 2 MOPP 12v wall plug external switching power supply Meets communication and medical safety certification 2 MOPP isolation protection Meets
Menu
48 W
90~ 264 Vac input
0°C to +40°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
GaN technology

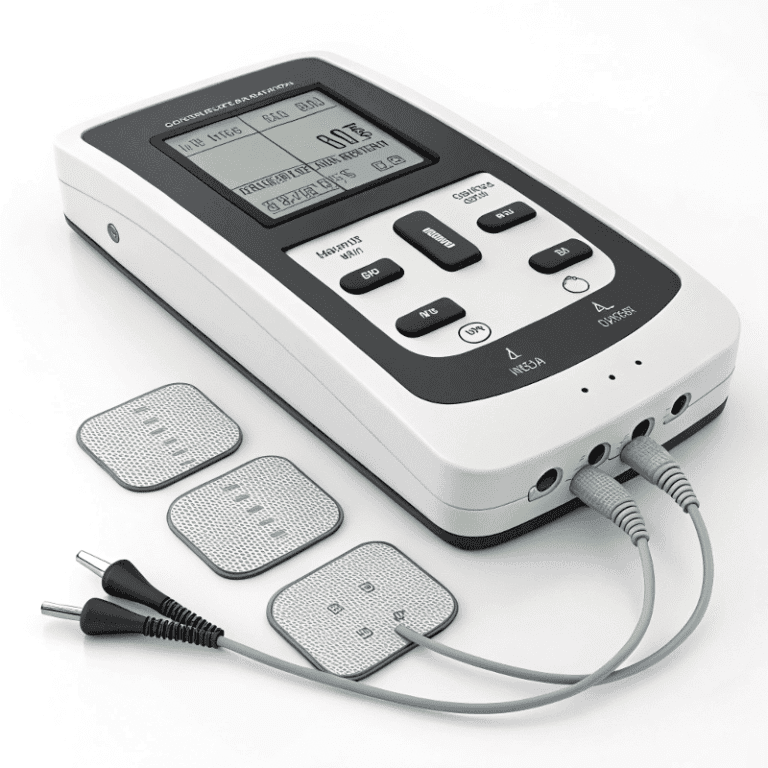

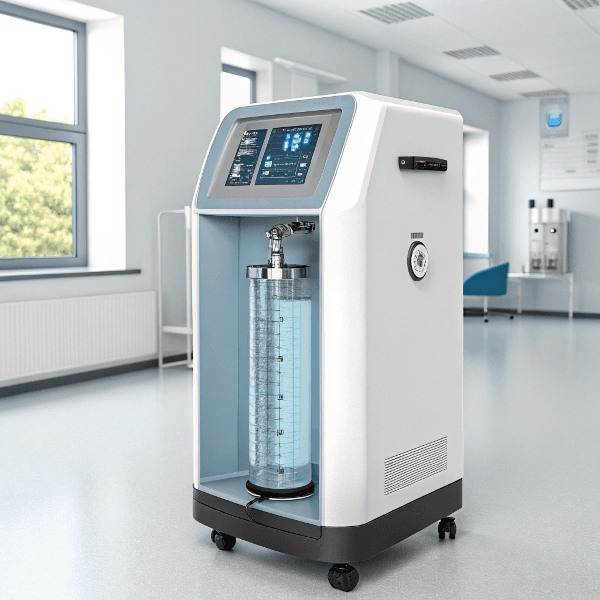

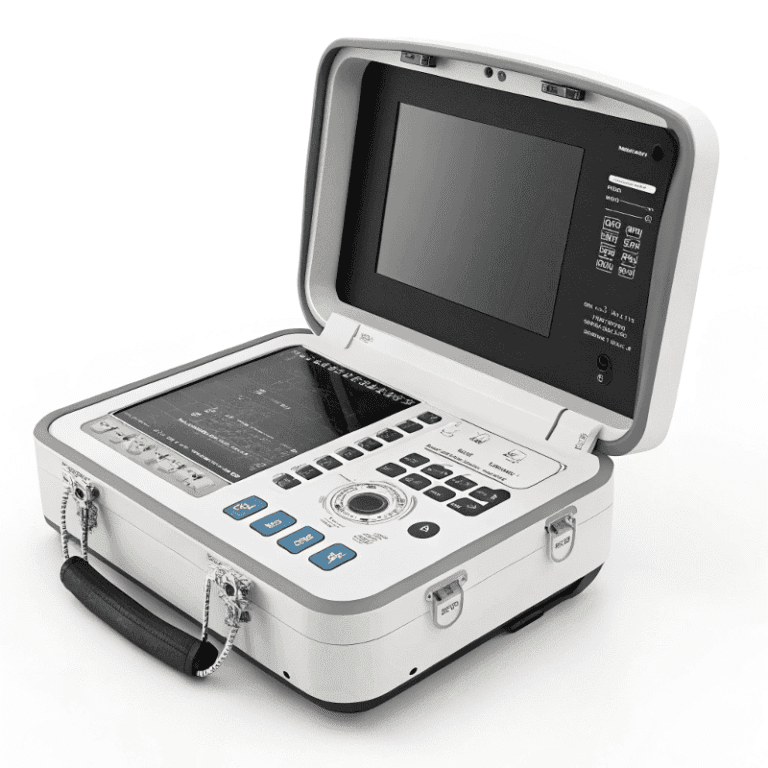

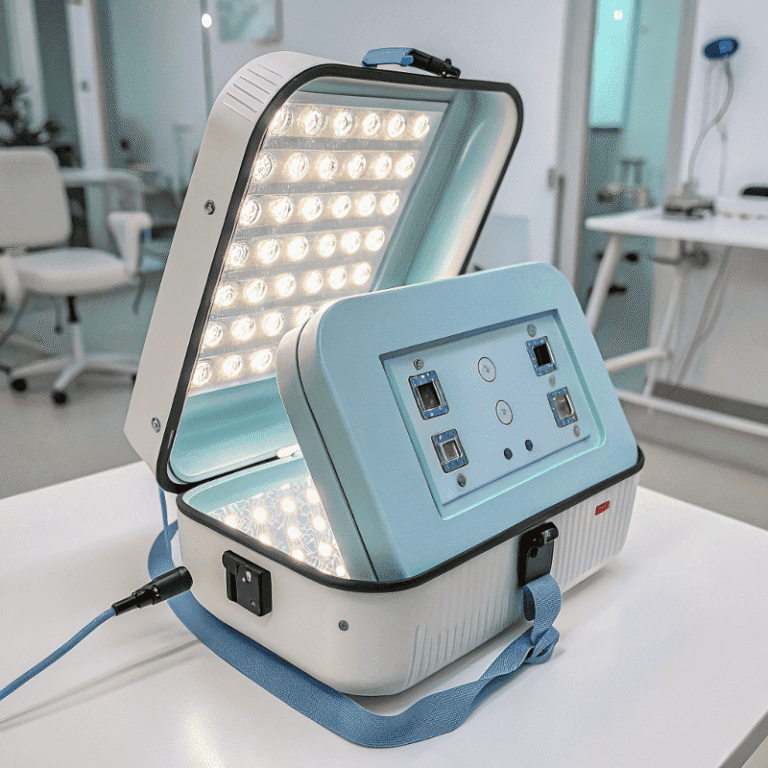

Application place: oxygen concentrator, nebulizer, portable ultrasound scanner, electrostimulator, portable phototherapy device, urine analyzer
The UES48LZ1-SPA is a universal hospital 48W wall plug type AC-DC external 24V power supply designed for home healthcare applications. It offers multiple output options, including 12V, 15V, 19V, and 24V, among other voltages (coming with a universal input of 80~264VAC), to cater to various medical devices. This power supply features four AC input ports. It adheres to the stringent safety standards of IEC 60601 1 3.1 Edition for 2 x MOPP applications, as well as the 4th Edition EMC requirements, ensuring class II power supply operation. That uses GaN technology, real power, full load aging testing, and 100% loading testing. This power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment. Accept OEM/ODM service, suitable for oxygen concentrator, nebulizer, portable ultrasound scanner, electrostimulator, portable phototherapy device, and urine analyzer.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES48LZ1-SPA | 45.0 | 90-264 | 12.0 | 0.01-3.75 | 0 ~ +40 | CE |
| UES48LZ1-SPA | 48.0 | 90-264 | 15.0 | 0.01-3.20 | 0 ~ +40 | CE |
| UES48LZ1-SPA | 48.0 | 90-264 | 19.0 | 0.01-2.52 | 0 ~ +40 | CE |
| UES48LZ1-SPA | 48.0 | 90-264 | 24.0 | 0.01-2.00 | 0 ~ +40 | CE |
It is ideal for patient monitors, portable ventilators, nebulizers, handheld ultrasound scanners, TENS devices, and diagnostic tools.
Yes, it meets IEC 60601-1 and IEC 60601-1-2 standards for medical electrical equipment.
It allows compatibility with various devices requiring different voltage levels, making it highly flexible for OEM applications.
External adapters reduce heat inside the device, enhance patient safety, and simplify maintenance or replacement.
Yes, its compact size and high safety standards make it ideal for home healthcare applications like CPAP machines and therapy units.
Yes, models can be designed to meet 2xMOPP or MOOP requirements for patient and operator safety.
Yes, custom output connectors, cable lengths, and branding are available upon request.
Over-voltage, over-current, short-circuit, and over-temperature protection are standard.
Absolutely. Its lightweight and external form factor make it perfect for portable and handheld medical equipment.
Yes, it supports 100–240V AC input, suitable for worldwide use.
Home Medical Power Supply UES12LCP-SPA 2 MOPP 12v wall plug external switching power supply Meets communication and medical safety certification 2 MOPP isolation protection Meets

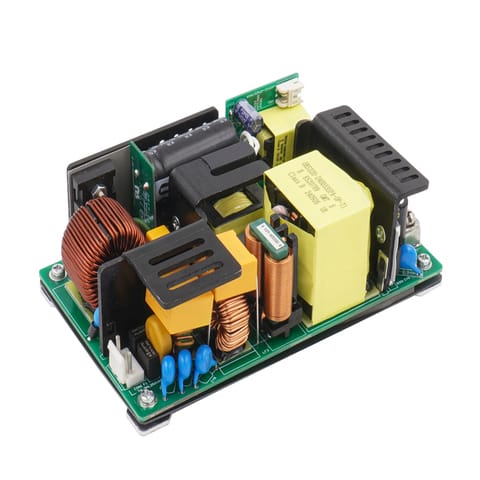

Home Medical Open Frame Power Supply UES320-XXXYYYSPA-OP 320W Single Output Switching Open Frame Power Supply For Medical Devices Compliant with communications and medical safety certifications
