Power Solution for Facial Beauty Devices
One stop power supply solution Power Solution for Facial Beauty Devices Reliable, low-noise power adapters designed for beauty and skincare technologies Quankang delivers specialized AC-DC
36 W
90~ 264 Vac input
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input-to-output isolation

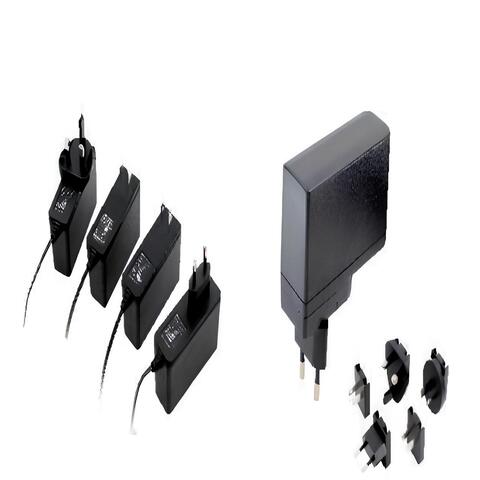

Interchangeable AC pins

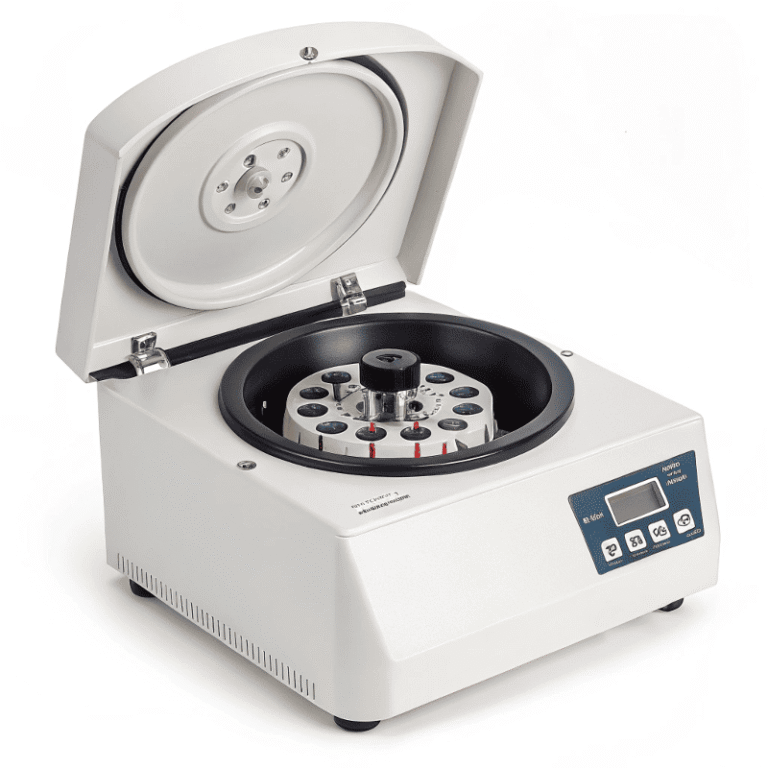

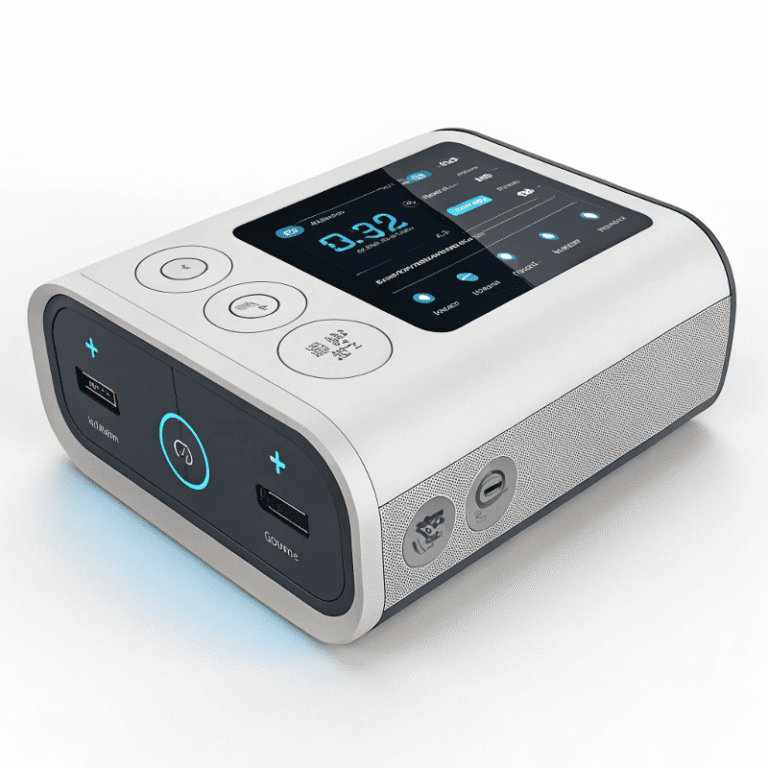

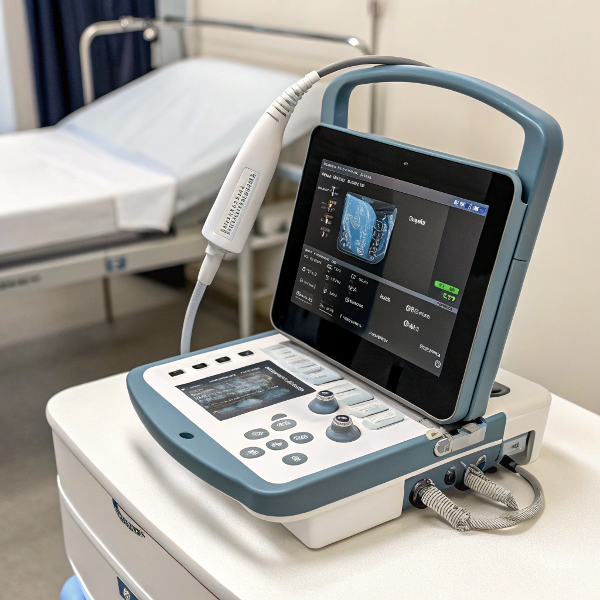

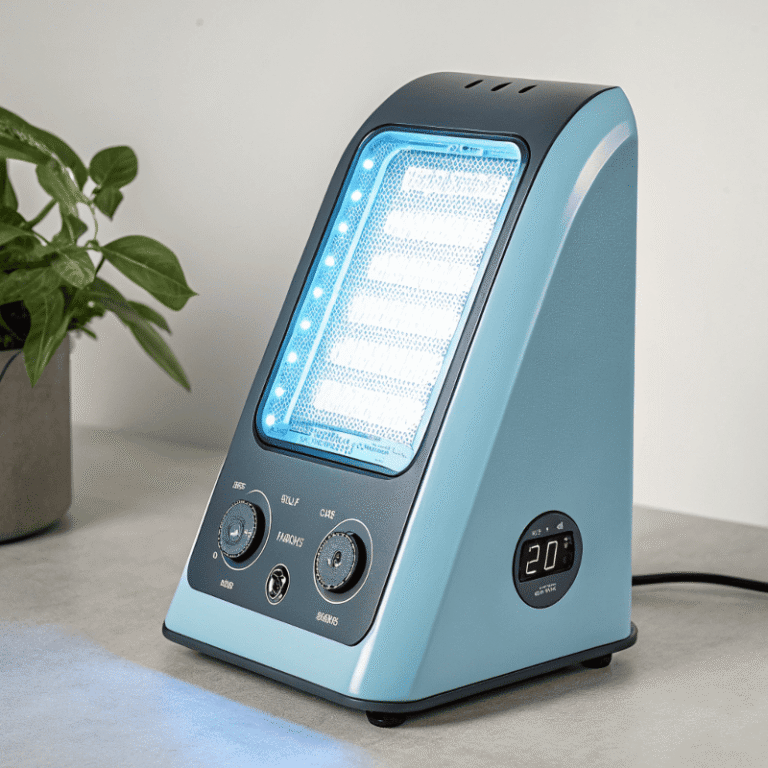

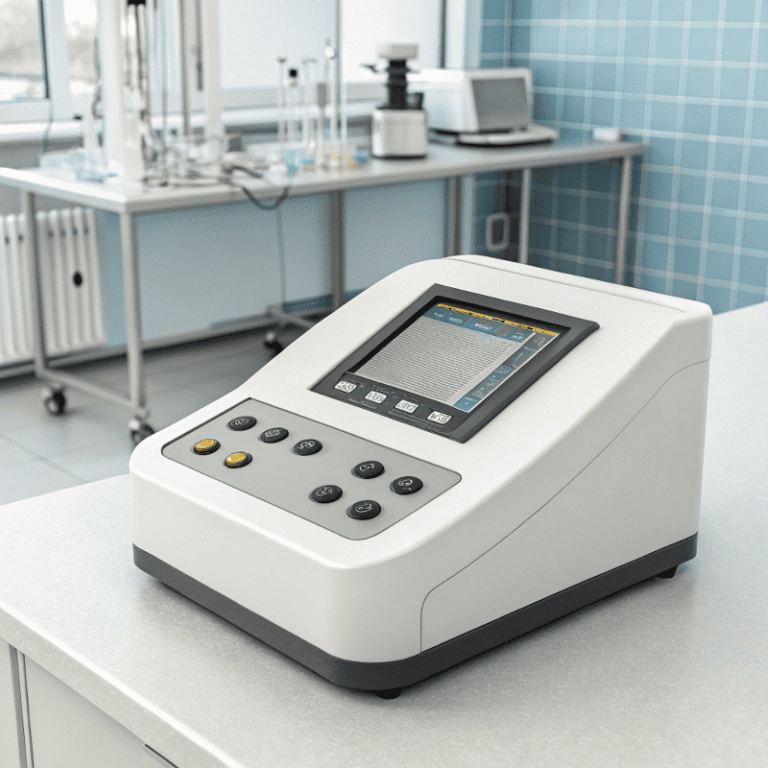

Application place: portable ultrasound diagnostic instrument, EEG electroencephalogram, blue light therapy instrument, urine analyzer, mini centrifuge, medical-grade sleep aid

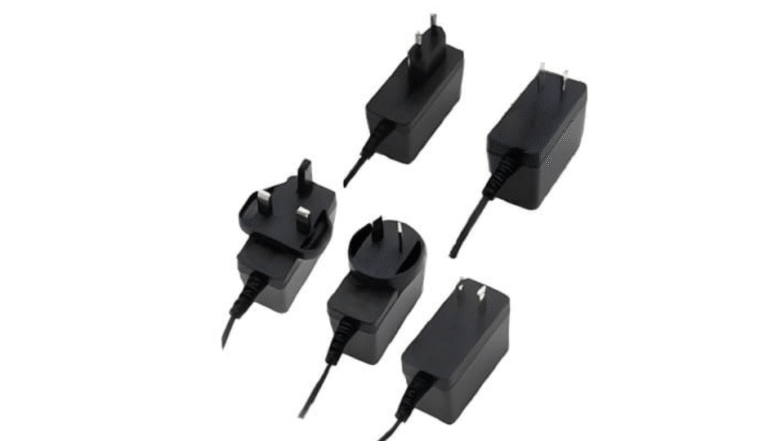

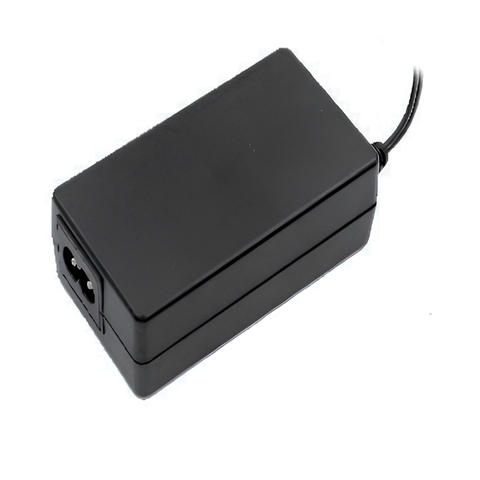

The UES36LCP2-SPA series is a 36W wall mount AC to DC switching hospital external 5V power supply with changeable AC pins, designed for home healthcare applications, It offers multiple output options, including 5V, 7.5V, 21V, and 48V, among other voltages (coming with a universal input of 90 ~ 264 Vac), to cater to various medical devices. This power supply features four AC input ports. It adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications, as well as the 4th Edition EMC requirements, ensuring class II operation. Accept OEM/ODM service, this power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility, suitable for portable ultrasound diagnostic instrument, EEG electroencephalogram, blue light therapy instrument, urine analyzer, mini centrifuge, medical-grade sleep aid.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES36LCP2-SPA | 30.0 | 90-264 | 5.0 | 0.01-6.00 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |
| UES36LCP2-SPA | 30.0 | 90-264 | 5.1-5.9 | 0.01-5.00 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |
| UES36LCP2-SPA | 30.0 | 90-264 | 7.5-14.0 | 0.01-4.00 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |
| UES36LCP2-SPA | 36.0 | 90-264 | 14.1-21.0 | 0.01-2.40 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |
| UES36LCP2-SPA | 36.0 | 90-264 | 21.1-30.0 | 0.01-1.63 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |
| UES36LCP2-SPA | 36.0 | 90-264 | 30.1-48.0 | 0.01-1.16 | 0 ~ +45 | CB, CE, cULus, FCC, NRTL, TUV-GS, TUV-Mark |

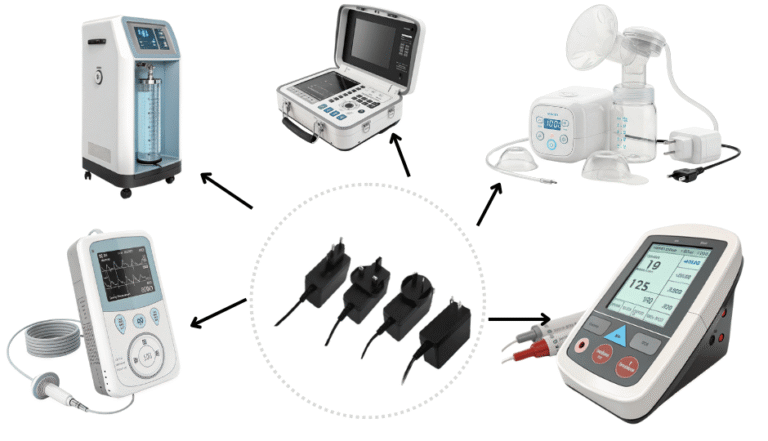

It is suitable for patient monitors, portable ultrasound, ECG machines, nebulizers, blood pressure monitors, and small lab analyzers.
Yes, it can be designed to meet IEC 60601-1 and IEC 60601-1-2 standards for medical electrical safety and EMC.
The adapter supports a wide range from 5V to 48V, covering various medical device requirements.
Absolutely. It is ideal for home-use devices like digital thermometers, pulse oximeters, and sleep therapy equipment.
Various DC plug types (e.g., 2.1mm, 2.5mm), DIN, or custom connectors can be provided depending on the application.
Yes, it can be certified with UL, CE, FCC, UKCA, PSE, and other regional standards upon request.
Yes, options like EU, US, UK, and AU plugs are available for global compatibility.
It meets DOE Level VI or CoC Tier 2 efficiency standards, ensuring energy-saving performance.
Yes, it is designed for 24/7 operation with stable output and over-temperature protection.
It includes OVP (over-voltage), OCP (over-current), SCP (short-circuit), and OTP (over-temperature) protection.
