Wall Plug Medical External Power Supply UES24LZ1-SPA
24 W
90 ~ 264 Vac input (wide)
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
Application places: dental LED curing light, portable electric dental bed, laser hair removal device, medical syringe pump, portable suction device, portable CPAP humidifier
DESCRIPTION
The UES24LZ1 -SPA is a 24W AC/DC wall plug adapter, a medical external 12-volt switching power supply, designed for home healthcare applications. This power supply features four AC input ports. It adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications, as well as the 4th Edition EMC requirements, ensuring class II operation. Suitable for a broad range of medical equipment, such as dental LED curing light, portable electric dental bed, laser hair removal device, medical syringe pump, portable suction device, portable CPAP humidifier, this power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment.
SAFETY & COMPLIANCE
Safety Standards – IEC60601,EN60601
Safety Approvals – CB, NRTL, PSE, TUV-Mark
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES24LZ1-SPA | 24.0 | 80-264 | 12.0 | 0.01-2.00 | 0 ~ +45 | CB, NRTL, PSE, TUV-Mark |
RELATED APPLICATIONS
POPULAR QUESTIONS
It is suitable for small to medium-power medical equipment such as patient monitors, portable ultrasound, nebulizers, and diagnostic devices.
Yes, it can power various modules and accessories used in patient monitoring systems.
Yes, many portable or tabletop ultrasound devices operate within the 24W power range and use 12V DC input.
It is compatible with accessories like humidifier modules or communication bases, but not with high-power main units.
Yes, it complies with IEC 60601-1 for basic safety and essential performance in medical environments.
Yes, it meets IEC 60601-1-2 standards for electromagnetic compatibility.
The leakage current is ≤100µA, compliant with medical safety standards.
Yes, it is designed with 2xMOPP insulation for patient-connected equipment.
Multiple AC plug types are available to meet global market requirements.
Yes, all standard protections are included for reliable and safe operation.
FEATURED PRODUCTS
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Home Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP 48Vdc 2A open frame power supply
Medical Power Supply UES24E-SPA
Home Medical Power Supply UES24E-SPA Desktop plug in class 2 medical power supply output 9v dc power supply Medical & l.T.E.safety approvals 2 MOPP input

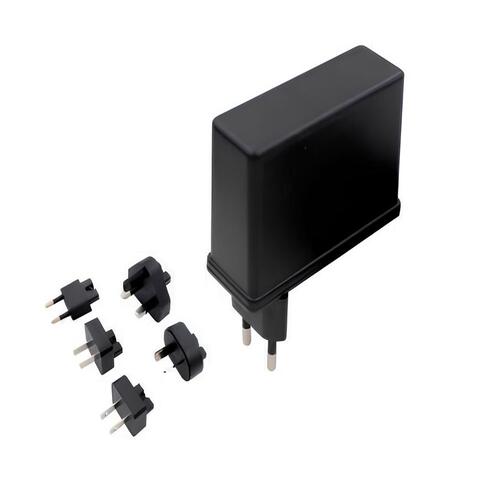

Medical Power Supply UES24LCP6-SPA
