Medical Power Supply UES24E-SPA
Home Medical Power Supply UES24E-SPA Desktop plug in class 2 medical power supply output 9v dc power supply Medical & l.T.E.safety approvals 2 MOPP input
24 W
90~ 264Vac input
7 ~ 52 Vdc output options
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
interchangable AC pins
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE, UL/cUL,TUV
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES24LCP-SPA | 21.0 | 90-264 | 6.1-7.0 | 0.01-3.00 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 21.0 | 90-264 | 7.1-8.0 | 0.01-2.62 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 21.0 | 90-264 | 8.1-9.0 | 0.01-2.33 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 21.0 | 90-264 | 9.1-10.0 | 0.01-2.10 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 10.1-11.0 | 0.01-2.18 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 11.1-12.0 | 0.01-2.00 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 12.1-13.0 | 0.01-1.84 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 13.1-14.0 | 0.01-1.71 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 14.1-15.0 | 0.01-1.60 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 15.1-16.0 | 0.01-1.50 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 16.1-17.0 | 0.01-1.41 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 17.1-18.0 | 0.01-1.33 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 18.1-19.0 | 0.01-1.26 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 19.1-20.0 | 0.01-1.20 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 20.1-21.0 | 0.01-1.14 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 21.1-22.0 | 0.01-1.09 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 22.0-23.0 | 0.01-1.04 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 23.1-24.0 | 0.01-1.00 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 45.1-46.0 | 0.01-0.52 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 46.1-47.0 | 0.01-0.51 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 47.1-48.0 | 0.01-0.50 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 48.1-49.0 | 0.01-0.49 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 49.1-50.0 | 0.01-0.48 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 50.1-51.0 | 0.01-0.47 | 0~+45 | CE, UL/cUL,TUV |
| UES24LCP-SPA | 24.0 | 90-264 | 51.1-52.0 | 0.01-0.46 | 0~+45 | CE, UL/cUL,TUV |
It is suitable for small to medium-power medical equipment such as patient monitors, portable ultrasound, nebulizers, and diagnostic devices.
Yes, it can power various modules and accessories used in patient monitoring systems.
Yes, many portable or tabletop ultrasound devices operate within the 24W power range and use 12V DC input.
It is compatible with accessories like humidifier modules or communication bases, but not with high-power main units.
Yes, it complies with IEC 60601-1 for basic safety and essential performance in medical environments.
Yes, it meets IEC 60601-1-2 standards for electromagnetic compatibility.
The leakage current is ≤100µA, compliant with medical safety standards.
Yes, it is designed with 2xMOPP insulation for patient-connected equipment.
Multiple AC plug types are available to meet global market requirements.
Yes, all standard protections are included for reliable and safe operation.
Home Medical Power Supply UES24E-SPA Desktop plug in class 2 medical power supply output 9v dc power supply Medical & l.T.E.safety approvals 2 MOPP input
Home Medical Power Supply UES24LCP6-SPA Interchangeable AC plugs 12V medical device 24w switching power supply Medical & l.T.E.safety approvals 2 MOPP input to output isolation
Home Medical Power Supply UES24LZ5-SPA 24W Medical device power supply external switching power supply 24V Medical & I.T.E.safety approvals 2 MOPP input to output isolation

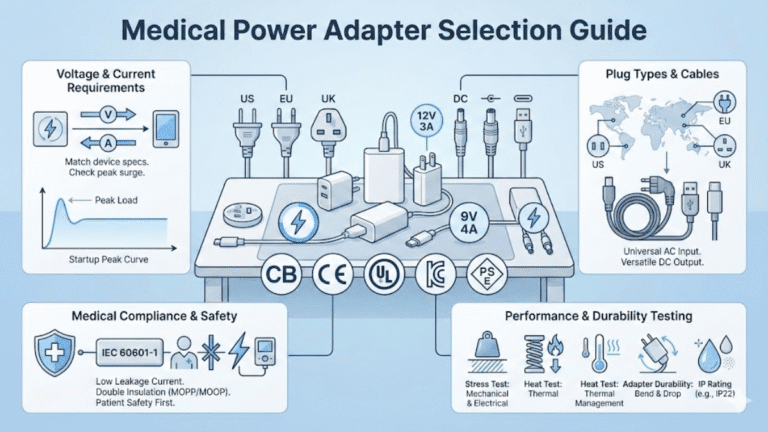

Hi engineers， sometimes it will be tough for people like us to choose a power adapter that could perfectly fit our products. There are always
