Medical Power Supply UES36LCP2-SPA
Home Medical Power Supply UES36LCP2-SPA 5V to 48V Wall Mount Hospital Devices USB Type Charger Switching Power Supply 36 W 90~ 264 Vac input 0°C to
12 W
90 ~ 264 Vac input (wide)
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
Equipped with various interchangeable stylesAC pin
Lithium electronic battery charger with LED indicator

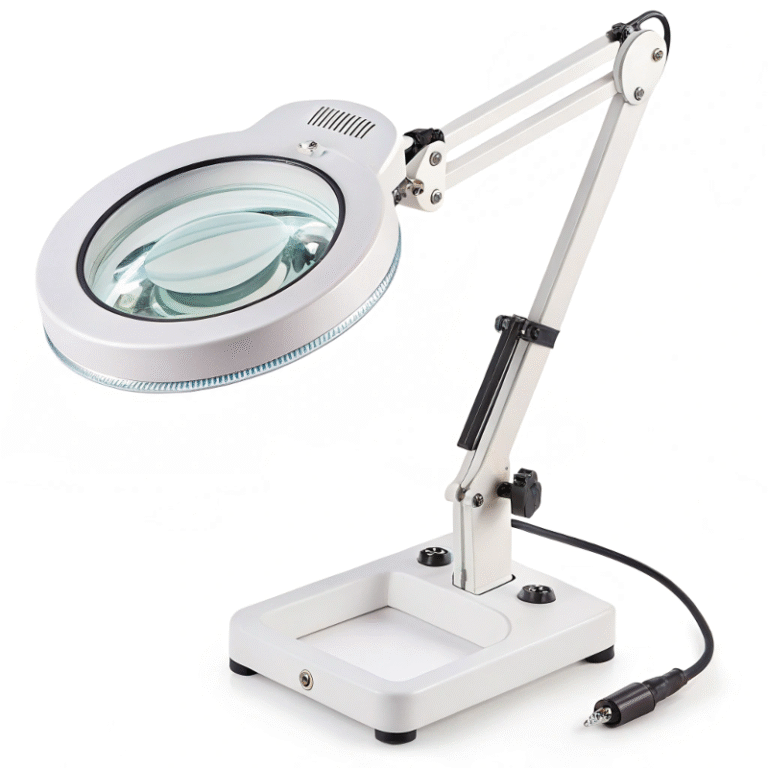

Application places: medical magnifying glass lamp, fetal heart rate monitor, electronic blood pressure monitor, desktop type, medical label printer, body temperature recorder, cholesterol analyzer
The UES12LCP2 -SPA series is a 12W wall plug medical AC-DC switching external power supply, designed for home healthcare applications. It offers multiple output options, including 5V, 12V, 18V, and 24V, among other voltages (coming with a universal input of 90 ~ 264 Vac), to cater to various medical devices. This power supply features four AC input ports and adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 MOPP applications, as well as the 4th Edition EMC requirements, ensuring class II operation. With compact size, Level VI efficiency, and different construction, it is suitable for medical magnifying glass lamp, fetal heart rate monitor, electronic blood pressure monitor, desktop type, medical label printer, body temperature recorder, cholesterol analyzer, this power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment.
Safety Standards – IEC60601,EN60601
Safety Approvals – CB,FCC,UL/cUL,TUV
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES12LCP2-SPA /UES12LCP2-SPC | 10.0 | 80-264 | 4.0-5.0 | 0.01-2.00 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 11.8 | 80-264 | 5.1-5.9 | 0.01-2.00 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 6.1-7.0 | 0.01-1.71 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 7.1-8.0 | 0.01-1.50 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 8.1-9.0 | 0.01-1.33 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 9.1-10.0 | 0.01-1.20 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 10.1-11.0 | 0.01-1.09 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 11.1-12.0 | 0.01-1.00 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 12.1-13.0 | 0.01-0.94 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 13.1-14.0 | 0.01-0.86 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 14.1-15.0 | 0.01-0.80 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 15.1-16.0 | 0.01-0.75 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 16.1-17.0 | 0.01-0.71 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 17.1-18.0 | 0.01-0.67 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 18.1-19.0 | 0.01-0.63 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 19.1-20.0 | 0.01-0.60 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 20.1-21.0 | 0.01-0.57 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 21.1-22.0 | 0.01-0.55 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 22.1-23.0 | 0.01-0.52 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
| UES12LCP2-SPA /UES12LCP2-SPC | 12.0 | 80-264 | 23.1-24.0 | 0.01-0.50 | 0 ~ +45 | CB,FCC,UL/cUL,TUV |
This adapter is suitable for low-power medical devices such as blood pressure monitors, glucose meters, fetal dopplers, and pulse oximeters.
Yes, it supports portable and desktop diagnostic tools requiring 5V, 9V, or 12V power inputs.
Absolutely. It can power low-voltage LED exam lights or magnifier lamps typically running on 12V.
Yes, devices like Wi-Fi or Bluetooth gateways and data receivers often use 5V–9V, well within its range.
Yes. Charging bases for hearing aids, therapy gloves, and similar wearable systems frequently operate at 5V or 9V.
Yes, it can supply power to digital pipettes, control modules, and sample mixers requiring 9V, 12V, or even 24V.
Yes, compact data collection and labeling devices usually operate within 5V–12V power ranges.
Common outputs include 5V, 6V, 9V, 12V, 15V, and 24V. Custom voltage settings are also possible.
Medical-grade versions comply with IEC 60601-1 safety and IEC 60601-1-2 EMC standards.
Options include DC barrel plug, USB-A, USB-C, and custom connectors upon request.
