One stop power supply solution Power Solution for Facial Beauty Devices Reliable, low-noise power adapters designed for beauty and skincare technologies Quankang delivers specialized AC-DC
5 W
90 ~ 264 Vac input (wide)
0°C to +45°C temperature range
No-load power consumption < 0.3 W
2 MOPP input to output isolation
Interchangeable AC plug options

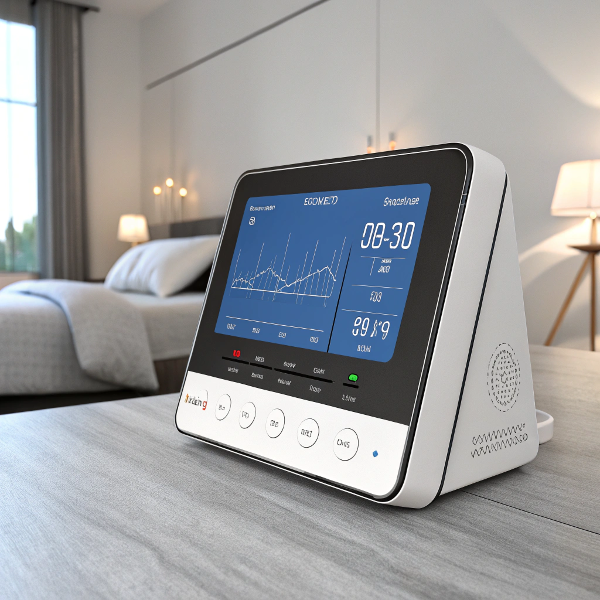

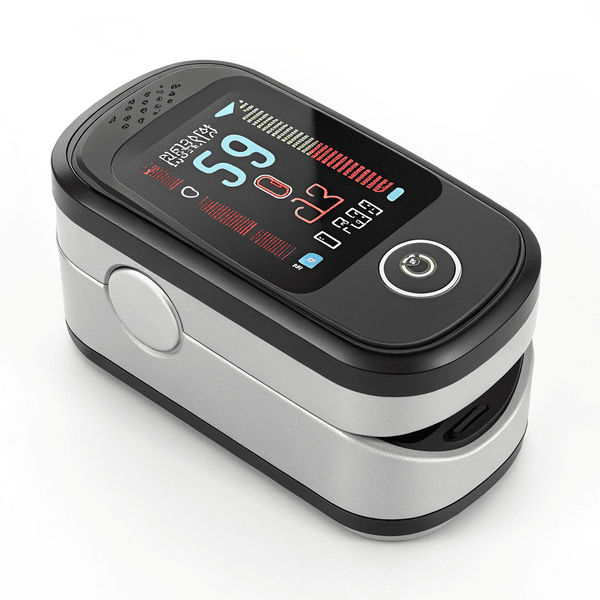

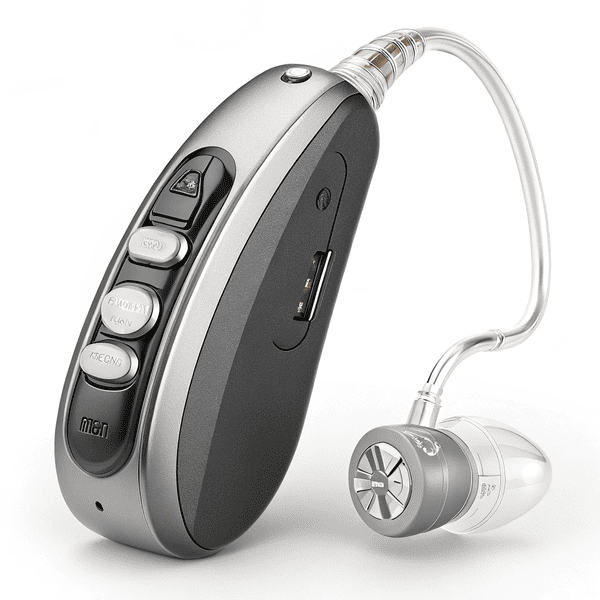

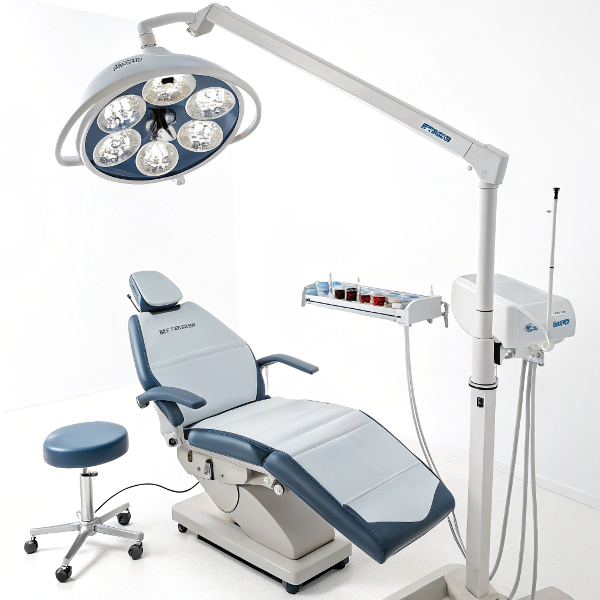

Applications:low-frequency electrotherapy devices/ portable nebulizer/ sleep monitor/ dental lighting equipment/ hearing aid/ pulse oximeter
The UE05LCP-SPA is a wall plug 5W 5V medical power supply interchangeable AC plug options hospital grade external switching power adapter, designed for home healthcare applications. It offers multiple output options, including 5V and 6V, among other voltages (coming with a universal input of 90~264VAC). This power supply feature adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications and the 4th Edition EMC requirements, ensuring class II operation, to cater to various medical devices. Adapter for low-frequency electrotherapy devices, portable nebulizer, sleep monitor, dental lighting equipment, hearing aid, and pulse oximeter. This power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment.
Safety Standards – IEC60601,EN60601
Safety Approvals – CB, CCC, NRTL, TUV-Mark
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UE05LCP-SPA | 5.0 | 90-264 | 5.0 | 0.01-1.00 | 0 ~ +45 | CB,CCC,NRTL,TUV |
| UE05LCP-SPA | 4.8 | 90-264 | 6.0 | 0.01-0.80 | 0 ~ +45 | CB,CCC,NRTL,TUV |
Suitable for low-power devices such as blood pressure monitors, blood glucose meters, pulse oximeters, portable nebulizers, sleep monitors, etc.
Adapters that comply with IEC 60601-1 and 2xMOPP standards are safe, have low leakage current, and are suitable for surface contact devices.
Check whether the voltage (5V or 6V), current (≤1A), polarity, and DC plug required by the device match.
Must comply with IEC 60601-1 (safety), EN55011 (electromagnetic compatibility), and DoE VI (energy efficiency) standards.
Supports 100-240V AC input, adapts to global power grids, and needs to confirm the plug type.
Yes, they suit low-power wearables like heart rate monitors or insulin pumps requiring 5-6V.
Yes, if certified to IEC 60601-1, they ensure safety for pediatric use with low leakage current.
Adapters with IP-rated enclosures can operate in humid conditions; check specifications.
Yes, if the adapter provides 5V via a USB interface compatible with the device’s requirements.
Yes, medical-grade adapters are designed for 24/7 operation with low heat generation.
