2.7W 9V medical wall plug Ac-Dc switching power supply
90~264 Vac input (wide)
9V Output
0 to +45°C temperature range
No-load power consumption < 0.3 W
2 MOPP input to output isolation
5 types of AC plug options
Applications: healthcare device/portable oxygen machine/beauty equipment/teeth cleanner device.
The UE03L-SPAZ is a 2.7W 9V external power supply medical wall plug AC-DC healthcare class II converter, which can make different AC plug options, designed for home healthcare applications. This power supply feature adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications and the 4th Edition EMC requirements, ensuring class II operation. This medical power supply is energy efficiency level V,≤0.3W standby power, suitable for blood glucose meter, pulse oximeter, electronic blood pressure monitor, hearing aid charger, portable heart rate monitor, smart health bracelet, this power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment.
Safety Standards – IEC60601,EN60601,
Safety Approvals-CE
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UE03L-XXXYYYSPAZ | 2.7 | 90-264 | 9.0 | 0.01-0.3 | 0 ~ +45 | CE |
Suitable for low-power devices like blood glucose meters, pulse oximeters, electronic blood pressure monitors, hearing aid chargers, portable heart rate monitors, and small medical displays.
Medical devices need adapters meeting IEC 60601-1 standards (e.g., 2xMOPP isolation, low leakage current <0.5mA) to ensure patient safety, minimize electromagnetic interference, and comply with medical EMC standards (e.g., EN60601-1-2).
Yes, it’s ideal for home-use devices like respiratory therapy equipment or electronic thermometers. It meets BF-type (body contact) safety standards and is portable and user-replaceable.
3W (about 0.33A at 9V) suits low-power devices. For higher power needs, choose a higher-rated adapter (e.g., 6W or 12W) with 9V output.
Qualified medical adapters comply with IEC 60601-1 (safety), EN60601-1-2 (EMC), and DoE VI (efficiency) standards, plus regional certifications like FDA, CE, or NMPA, depending on the market.
Medical-grade adapters are tested to EN60601-1-2 standards, ensuring minimal EMI and no interference with other sensitive medical equipment.
Most medical adapters support wide input voltage (100-240V AC) and multi-region plugs (US, EU, UK), but confirm local regulations and plug compatibility.
Medical-grade adapters typically last 3-5 years, depending on usage. Regularly check output stability and physical condition to ensure safety compliance.
Yes, it can power charging modules for wearables like health bands or ECG monitors, provided the connector (e.g., Micro USB) is compatible.
Check the device’s input voltage (9V), current (≤0.33A), connector type, and certification requirements. Refer to the device manual or consult the supplier.
Home Medical Power Supply UES65LZ2-SPC 12V/15V class II ac to dc external switching power supply for homecare devices Meets communication and medical safety certification Contact
Home Medical Power Supply UES60D1-200300SPC Support USB PD3.0 fast charging protocol 5v 9v external switching power supply Compliant with communications and medical safety certifications 2
Home Medical Power Supply UES60LCP-200300SPC Wall Plug Type External Power Supply 60W Universal Switching Power Adapter Meets communication and medical safety certification 2 MOPP isolation
As a leading power adapter manufacturer, Quankang has over 30 years of R&D experience in providing high-quality and reliable power adapters. Our commitment to excellence

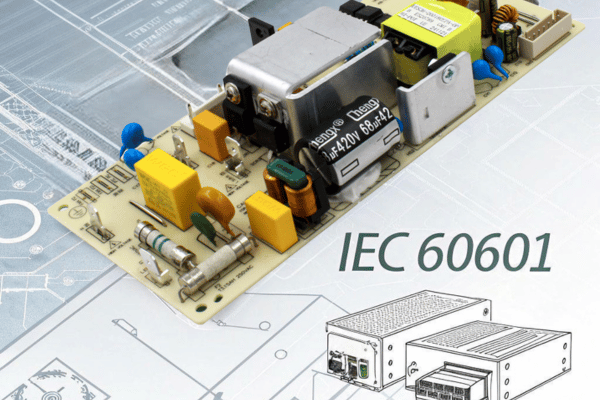

The safety of medical power supplies is not optional—it’s a mandatory foundation for trust in healthcare devices. Medical power supplies must meet IEC60601 standards and
