PRODUCT

PRODUCT

Preferred partner for ITE and medical use Power Supplies, wall mount, desktop, and open frame power supplies are available

ITE Power Adapter Medical Power Supply POE Adapter Quick Charger

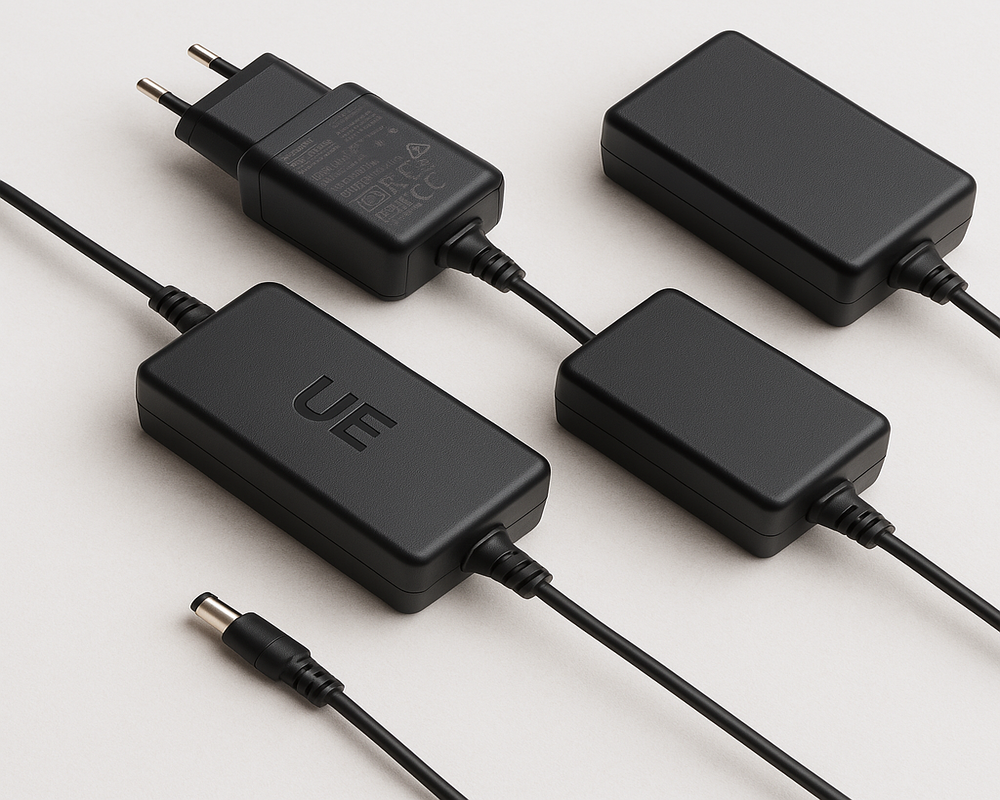

ITE Power Adapter

Desktop and Wall Plug Power Adapters Ranging from 5 to 300 W
AC-DC power supplies ranging from 5W to 300W. With more-than-30-year R&D experiences, Quankang is specialized in industrial, ITE, 5G telecom, medical, and household applications.
All industrial AC-DC power supplies meet IEC/EN 62368-1. More featured power supplies such as home healthcare power adapters, IOT power supplies, power supplies with EN 60335-1 approval for household use and slim brick type power supplies.Various packages are provided including wall-mount power adapters, desktop power adapters, open-frame power supplies.
ITE Power Adapter

PRODUCTS

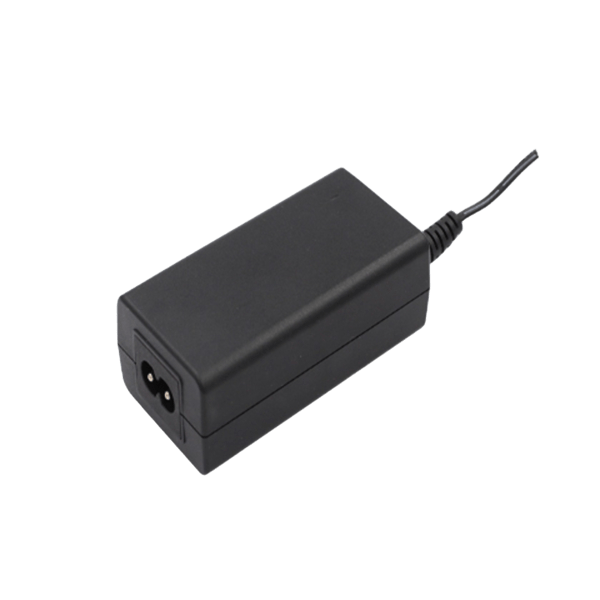

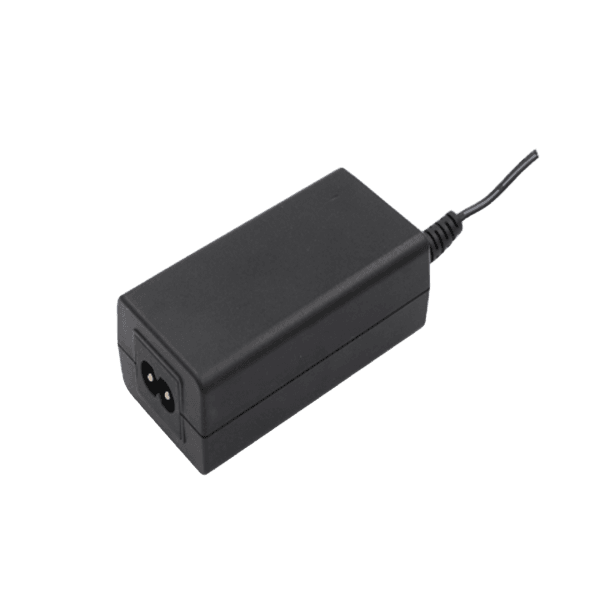

External Power Supply
External Power Supply
AC to DC wall pulg and desktop ITE grade external power supply, level VI efficiency,62368 safety standard
Learn more

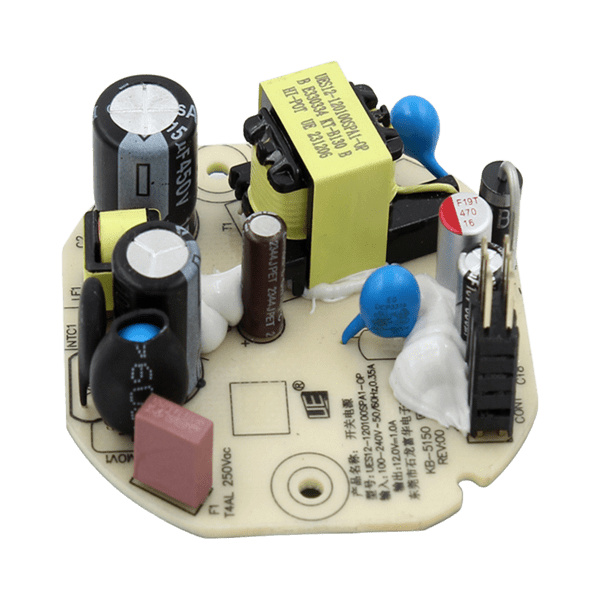

Open Frame Power Supply
Open Frame Power Supply
AC to DC ITE grade open frame power supply, level VI efficiency,62368 safety standard
Learn more

FAQ'S

1. What Determines The Number Of Prongs On A Wall Mount Power Supply?
Most wall mounted external power supplies are designed with only 2 input conductors (line and neutral) so the power supply can be plugged in either direction in a wall or power strip socket. The dc output voltage of these supplies is floating relative to ground since ac safety ground is not present at the input.
2. Why Do Some Desktop Power Supplies Have 2 Conductors And Some Have 3?
A 2-conductor power cord contains conductors for line and neutral while a 3-conductor cord also contains a conductor for ac safety ground. The output of a power supply with a 2-conductor cord will be floating relative to ground since ground is not present in the power supply. By convention, the output of desktop power supplies with 3-conductor power cords connect the negative output voltage terminal to ground.
3. Why Are The Dc Output Cables Limited In Length On External Power Supplies?
A longer dc output cable contributes to worse load regulation and worse power conversion efficiency. User applications often require a minimum load regulation value and international standards set minimum power conversion efficiency levels for external supplies. Sometimes a dc output cable with larger gauge conductors can be used to enable the use of a longer dc output power cable.

FEATURED PRODUCTS
