When it comes to modern lighting design, ceiling lights are one of the most common fixtures in both homes and commercial spaces. They provide general illumination, blend easily with the interior design, and are often the first step people take when upgrading to LED technology. However, behind the clean lines of a ceiling light lies an essential component that determines its performance and longevity—the LED driver power supply. Knowing how to connect the external LED driver power supply to a ceiling light is not only useful for electricians and installers but also for homeowners who wish to understand the backbone of their lighting system.

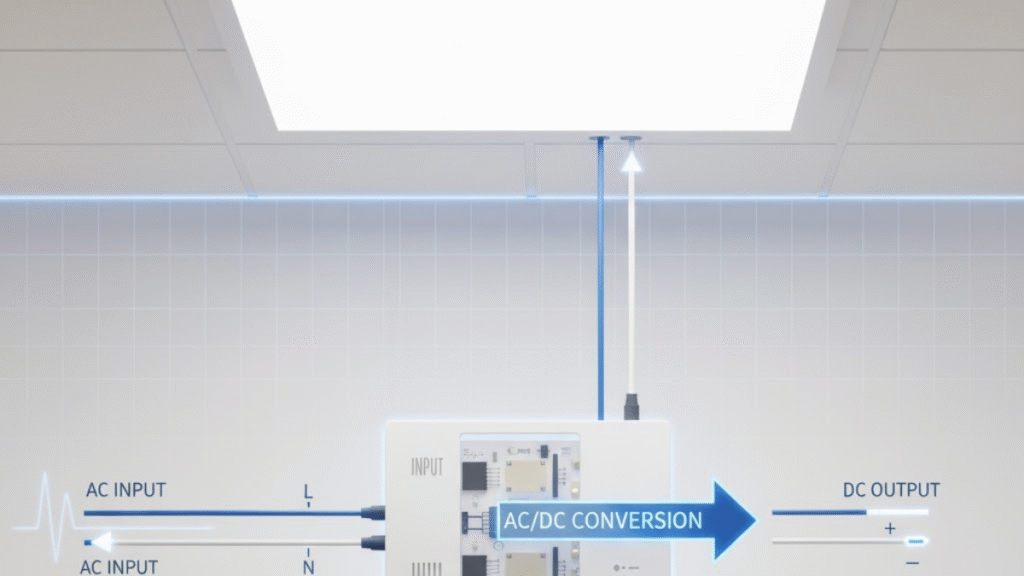

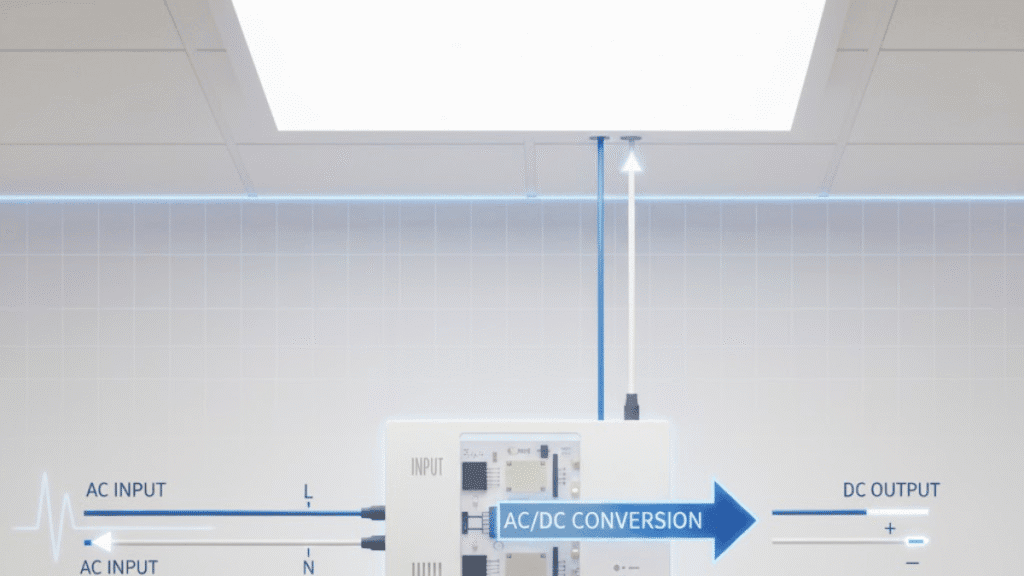

To begin with, it’s important to understand what an LED driver power supply actually does. Unlike traditional incandescent bulbs that run directly on AC mains power, LEDs require low-voltage DC with stable regulation. The LED driver serves as a bridge between the household AC power (typically 110V or 220V) and the low-voltage DC power required by the LED chips. It converts, regulates, and stabilizes the current, ensuring that the LEDs do not burn out or flicker due to power fluctuations. In many ceiling lights, the driver is built into the lamp housing. However, in others—particularly larger panels, commercial downlights, or decorative luminaires—the power supply is placed externally for easier maintenance and better heat management.
Before connecting an external LED driver to a ceiling light, safety and compatibility are the two most important considerations. Every LED fixture comes with a set of electrical specifications such as input voltage, output current, wattage, and polarity requirements. These parameters must match the LED driver. For instance, if your ceiling light operates at 36V DC and requires 700mA constant current, then the driver should deliver the same. Using the wrong type of driver could cause dimming issues, reduced lifespan, or even complete failure of the LED array. Always check the technical label on both the ceiling light and the power supply before you start wiring.
The next thing to check is the driver’s output type—constant voltage (CV) or constant current (CC). A constant voltage driver maintains a stable voltage (for example, 12V or 24V) and is usually used for LED strips or modules with built-in resistors. A constant current driver, on the other hand, delivers a fixed current (like 350mA, 700mA, or 1050mA) and automatically adjusts the voltage within a given range to drive high-power LEDs directly. Most ceiling lights, especially those with integrated LED chips, require constant current drivers. Knowing this difference will determine not just the wiring but also the type of dimming or control options you can use later.
Once you’ve confirmed compatibility, it’s time to prepare the tools and environment. Make sure the main power is switched off, and use a reliable voltage tester to confirm that there is no residual current. Gather tools such as a screwdriver, wire cutter, stripper, and appropriate connectors. If you are working with metal fixtures or in damp environments, grounding the driver properly is critical for electrical safety. Many high-quality LED driver power supplies come with a built-in grounding terminal or a green/yellow wire for this purpose.

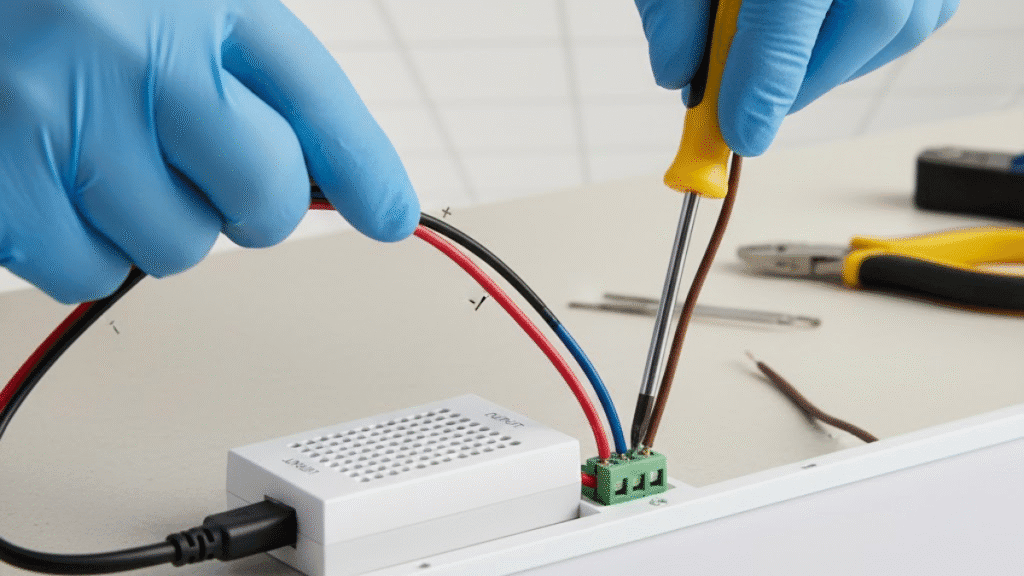

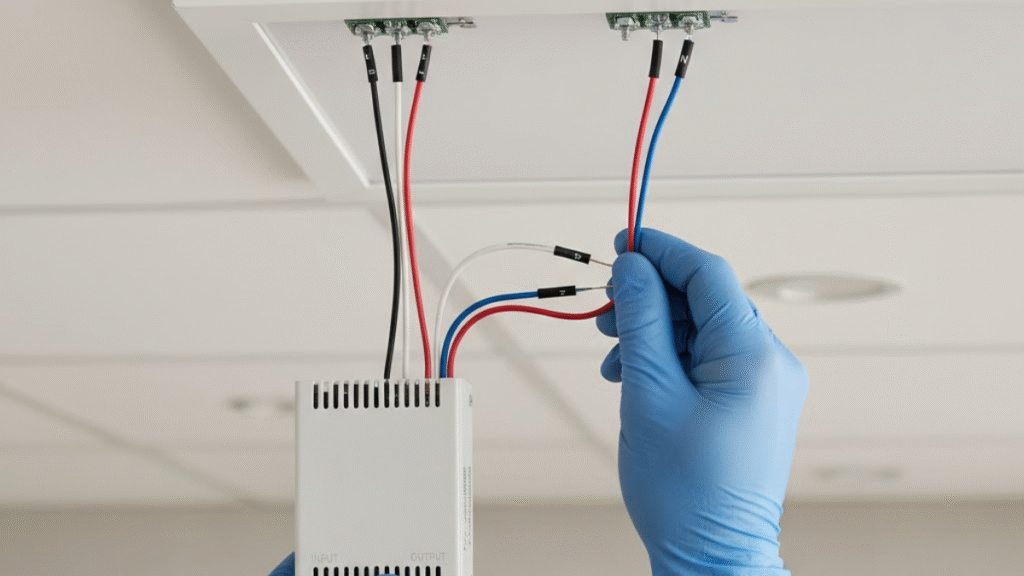

The connection process usually involves three sets of wires: AC input, DC output, and the connection to the light fixture itself. The AC side of the driver typically includes three wires—live (L), neutral (N), and ground (G). Connect these to your household power line following the same color codes. On the DC side, there are typically two wires: the positive output (+) and the negative output (–). These wires must be connected to the corresponding terminals of the ceiling light. Always pay attention to polarity; reversing the connection could prevent the LEDs from lighting or even cause damage. If your LED driver has detachable connectors or plug-in terminals, insert them securely and make sure they are not loose.

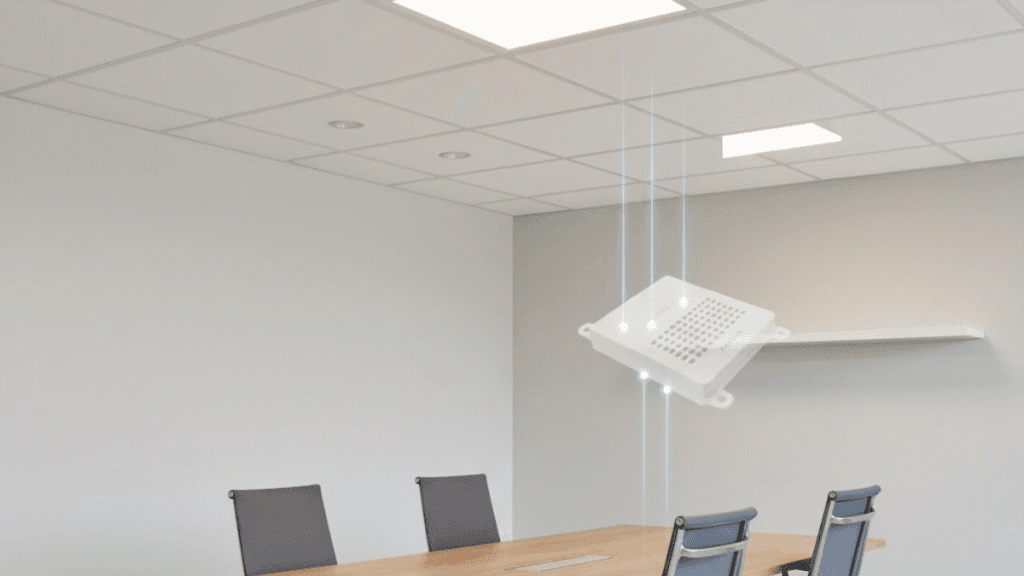

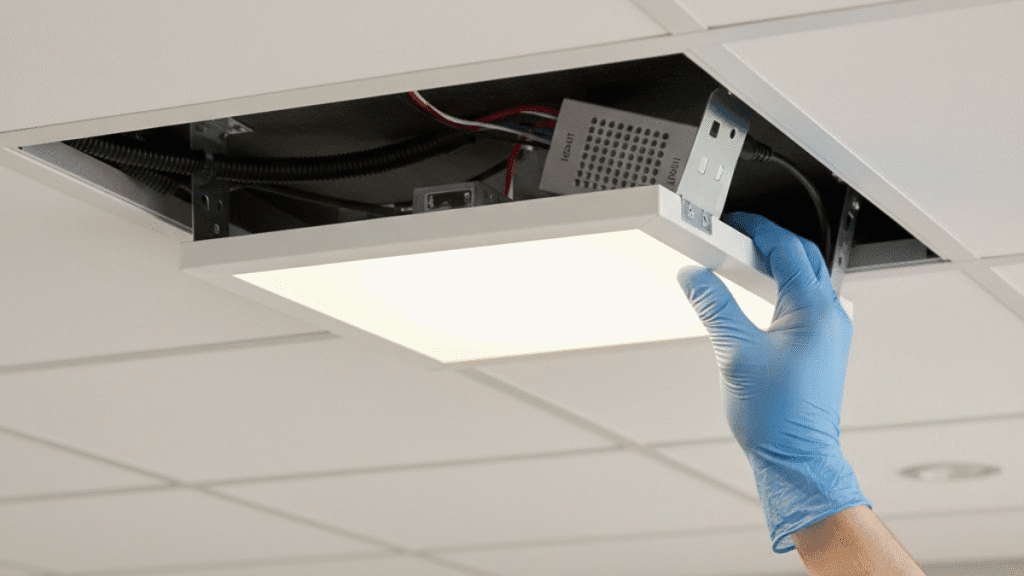

After wiring, secure the driver near the light fixture. Many external LED driver power supplies are designed to be installed outside the ceiling panel or in a hidden compartment above the ceiling. This helps with heat dissipation and allows easy access if replacement is needed in the future. Never enclose the driver in an airtight box or place it too close to insulation material, as overheating could shorten its lifespan. If you’re installing multiple ceiling lights in one circuit, ensure that each has its own driver or that the total power does not exceed the driver’s rated output.
Once everything is connected and properly secured, you can turn the power back on to test the light. If the ceiling light turns on smoothly without flicker or delay, your connection is correct. However, if the light flashes, remains dim, or doesn’t light at all, immediately turn off the power and check your wiring again. Sometimes the issue may be a loose connection, a mismatched driver type, or incorrect polarity. A quick troubleshooting session will usually identify the problem. In more advanced setups where dimming is needed, make sure that both the LED driver and the wall dimmer are compatible—many modern drivers support 0–10V, Triac, or DALI dimming, but these need the right pairings to function correctly.
From a design and installation perspective, external LED drivers have several advantages for ceiling lights. They help reduce heat inside the luminaire, leading to longer LED lifespan and more stable light output. They also make replacement easier—when the driver fails, you can simply replace the external power supply instead of the entire lamp. This is particularly beneficial for commercial projects or decorative lighting systems where maintenance costs matter. Furthermore, the external design allows for higher efficiency and advanced control options such as smart lighting, dim-to-warm, or color-tunable systems.
However, external drivers also require a bit more planning during installation. You must consider where to mount them, how to route the cables neatly, and how to ensure adequate ventilation. In some cases, ceiling space may be limited, so compact, slim-profile drivers are preferred. If your ceiling is made of plasterboard or gypsum, use mounting clips or brackets to hold the driver securely in place. Avoid leaving it hanging freely above the ceiling void. Proper cable management not only makes the installation look professional but also prevents future issues caused by vibration or accidental disconnection.
Another point that many people overlook is the environmental rating of the LED driver. If your ceiling light is installed in humid areas such as bathrooms, kitchens, or outdoor eaves, always choose a driver with an IP rating of at least IP44 or higher. Waterproof drivers are often sealed in aluminum or epoxy resin casings to prevent moisture ingress. Using an indoor-rated driver in a damp environment can lead to electric shock or corrosion over time. The same logic applies to temperature: drivers should operate within their specified ambient temperature range, usually between -20°C and +50°C.
In addition to electrical safety, electromagnetic compatibility (EMC) is another concern. Poor-quality LED drivers can emit interference that affects nearby electronics such as radios or Wi-Fi routers. Choosing a driver certified with CE, UL, or FCC compliance ensures that it meets strict EMC and safety standards. In professional installations, especially in offices or hospitals, compliance is not optional—it’s mandatory.
When working with dimmable ceiling lights, the connection becomes slightly more complex but follows the same principle. The driver will include additional control wires, such as a pair for 0–10V dimming or a signal line for DALI control. These should be connected according to the control system’s diagram. The key is to make sure all components—the dimmer, the driver, and the LED fixture—speak the same “language.” Mismatching protocols or signal types can result in flickering, buzzing, or non-responsive lights. Therefore, always consult the manufacturer’s datasheet before connecting a dimming interface.
Once the installation is complete, it’s a good practice to label the driver or note its specifications on the ceiling panel. This makes future maintenance or replacement easier, especially when dealing with multiple identical lights. Over time, dust and heat can still affect performance, so a quick inspection every year is advisable. Make sure the driver’s ventilation holes are not blocked and that the cables remain firmly connected.
At its core, connecting an external LED driver power supply to a ceiling light is about understanding the relationship between power, safety, and light performance. While it may sound technical, the logic is quite straightforward: the driver supplies stable, controlled power, and the LED converts it into efficient light. As long as you follow basic principles—matching specifications, observing polarity, ensuring good insulation, and maintaining proper ventilation—you’ll have a lighting system that performs reliably for years.
What makes this knowledge particularly valuable today is the trend toward modular lighting systems. Many lighting designers prefer external LED drivers because they allow flexibility: you can easily swap out drivers to adjust brightness, color temperature, or control type without changing the entire light fixture. This modularity supports sustainability as well, reducing waste and extending the usable life of the luminaires.
In conclusion, connecting an external LED driver power supply to a ceiling light may appear complicated at first glance, but it follows a clear and logical sequence. Choose a driver that matches the light’s electrical needs, connect the AC and DC sides carefully with attention to polarity, secure the driver in a safe and ventilated space, and test the system before finalizing. Whether you are an installer, a lighting designer, or a curious homeowner, understanding this connection not only helps you ensure safety but also empowers you to make smarter choices about the lighting you live and work under. With the right driver and correct installation, your ceiling light will deliver the brightness, stability, and efficiency that make modern LED technology so remarkable.
